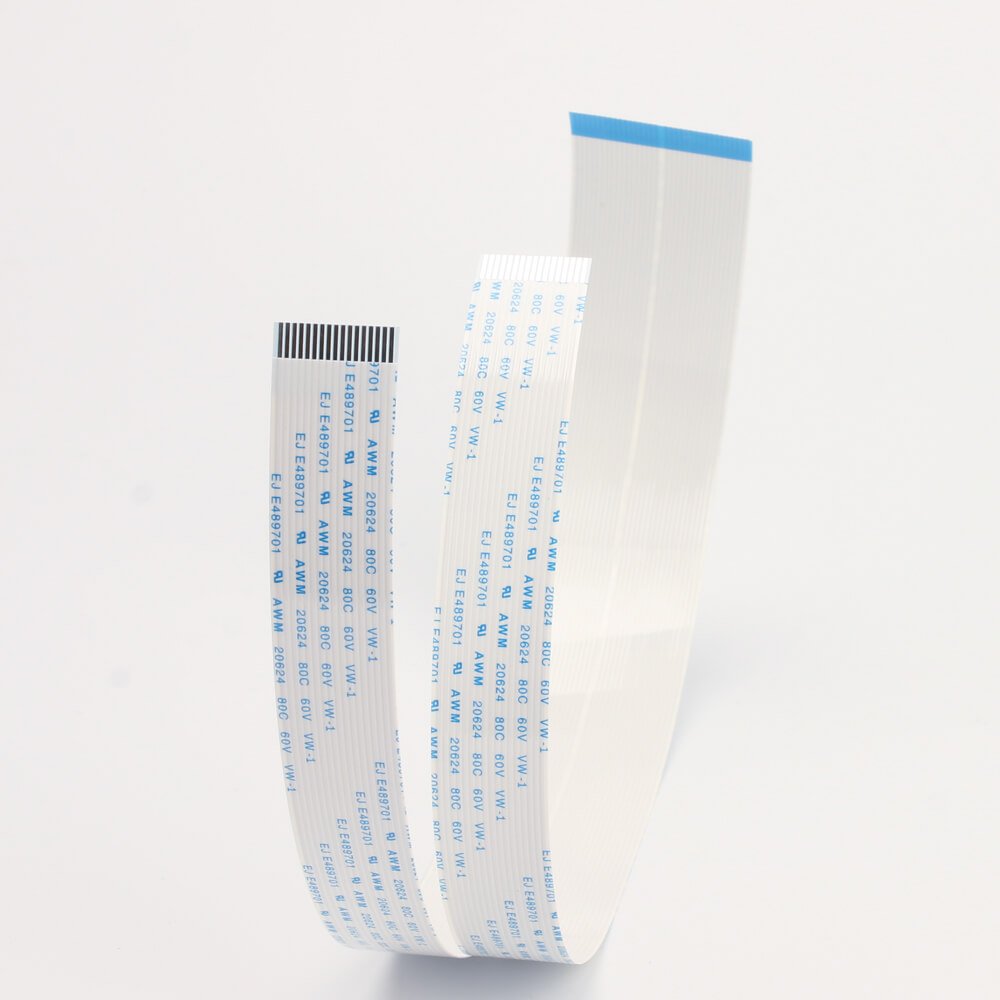

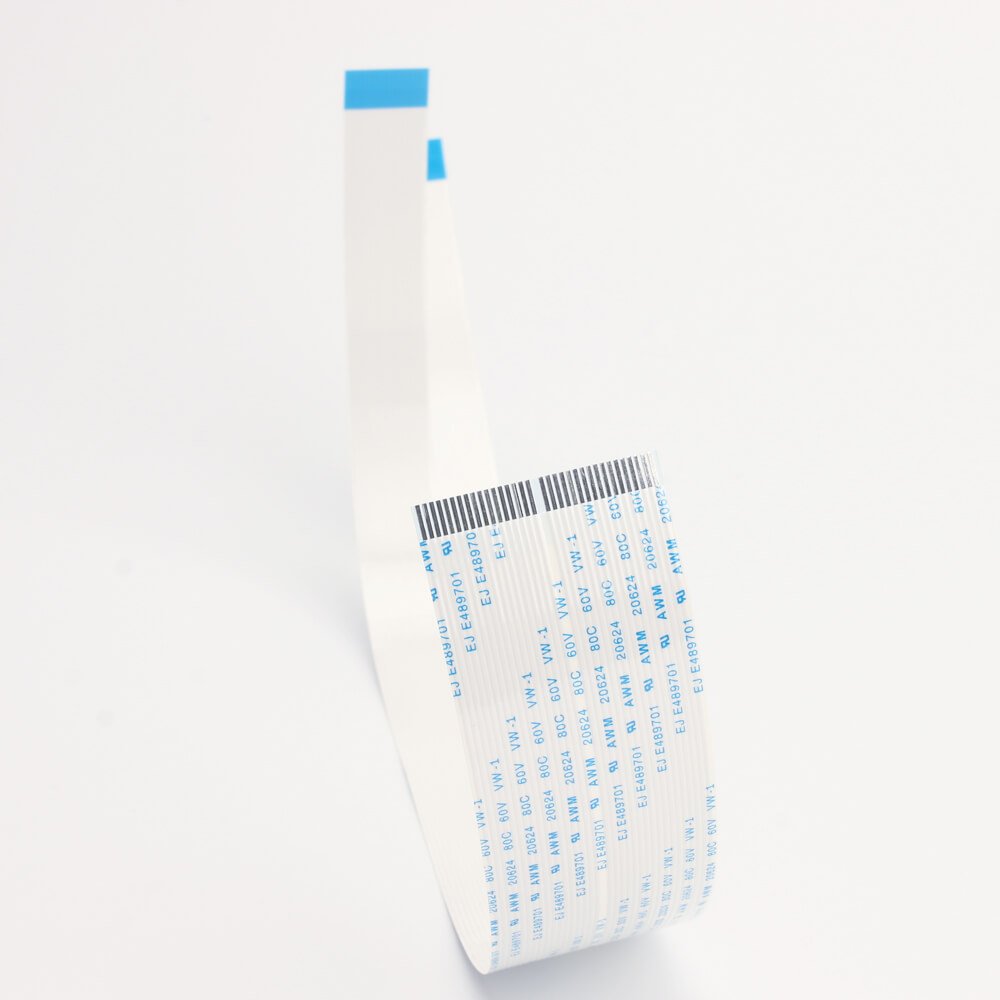

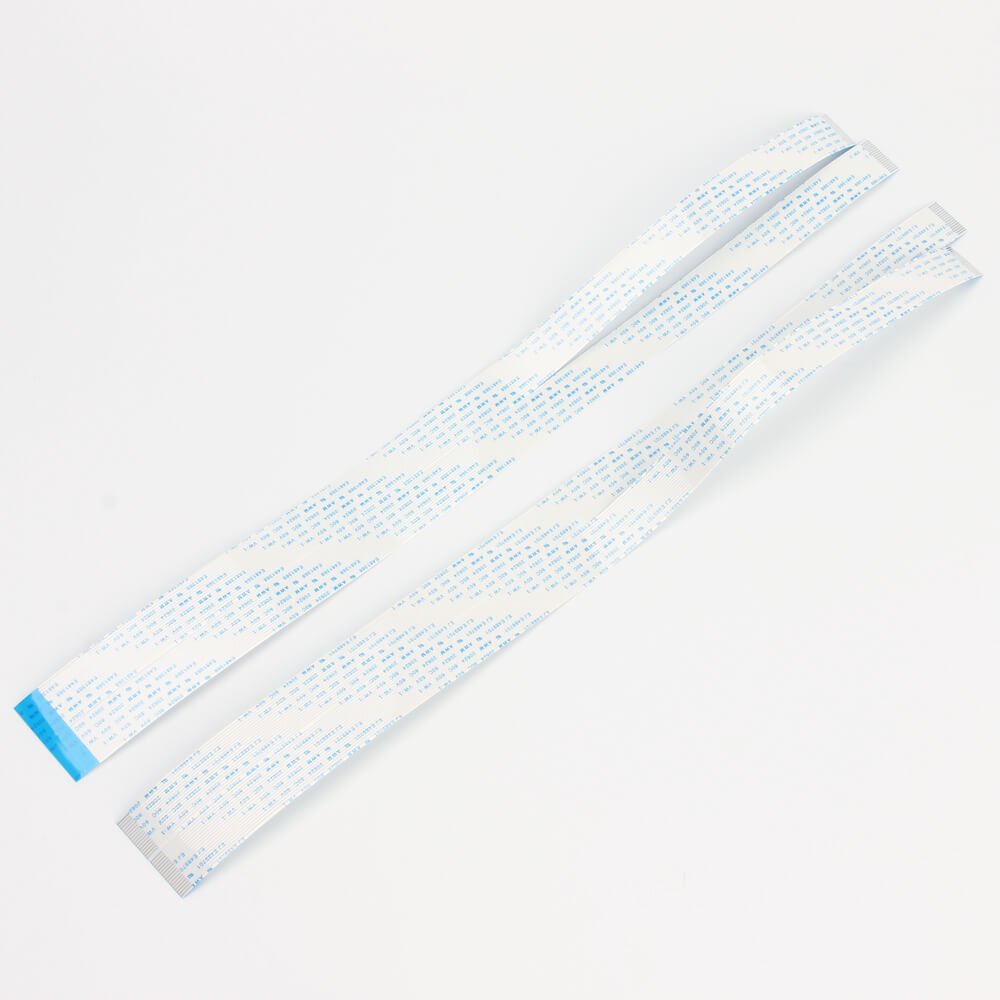

Epson DX7 34 Pin FFC Cable 34P400B-1.0 Description
This high-quality data flat cable is compatible with Epson DX7 printhead-based printers. It connects the print heads to the print carriage board. We recommend changing the head cable when replacing the printhead.
Model: 34P400B-1.0
34P means there are 34 chips on the cable.
400 means the length is 40 cm.
B means the two ends of the chip are on the reverse surface.
1.0 means the distance between the two chips is 1 mm.
Epson DX7 34 Pin FFC Cable Specifications
| Pins | 34P |
| Length | 40 cm |
| Pins Width | 1.0 mm |
| Pin Direction | The chip at Reverse Face (B) |
| Suitable Printhead | Epson DX7 Head |
Epson DX7 printhead cable models:
| DX7 head cable | DX7 same side head cable | 34P |
| DX7 reverse side head cable |
