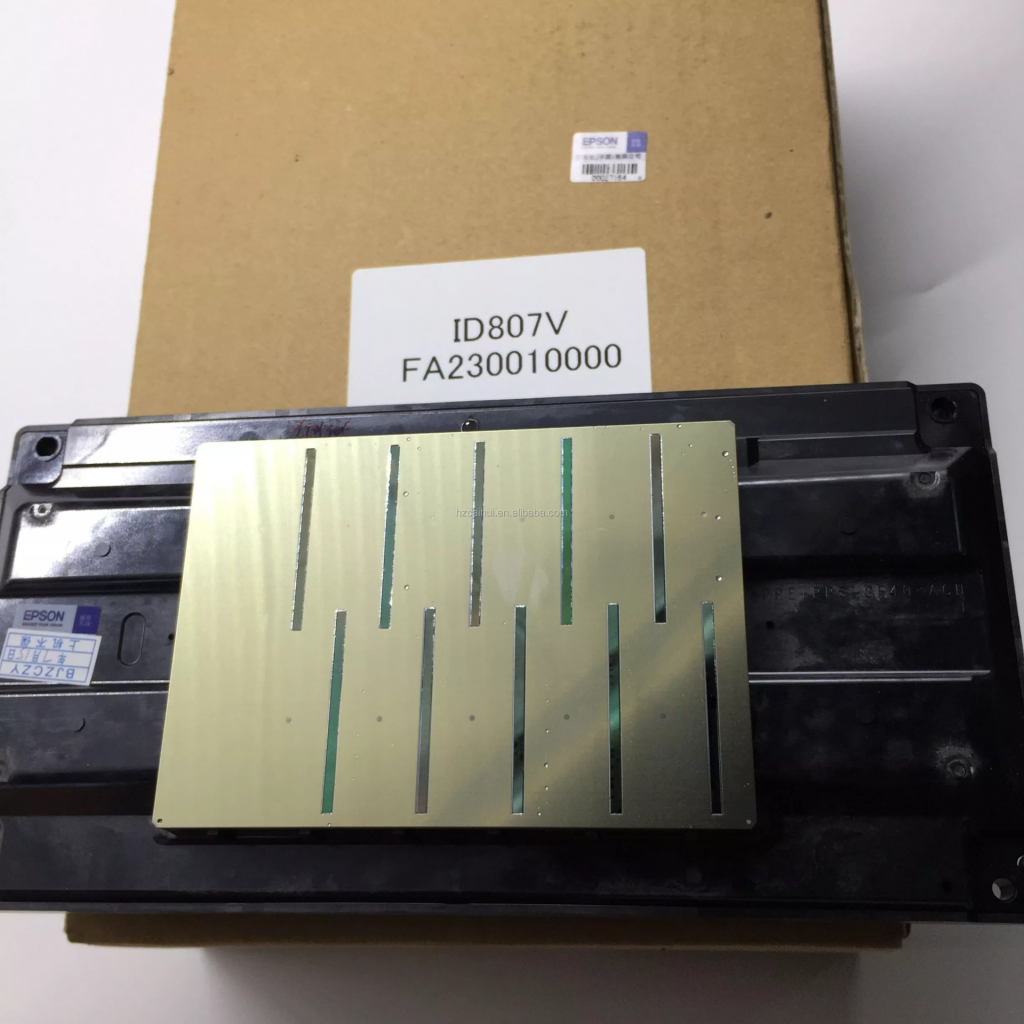

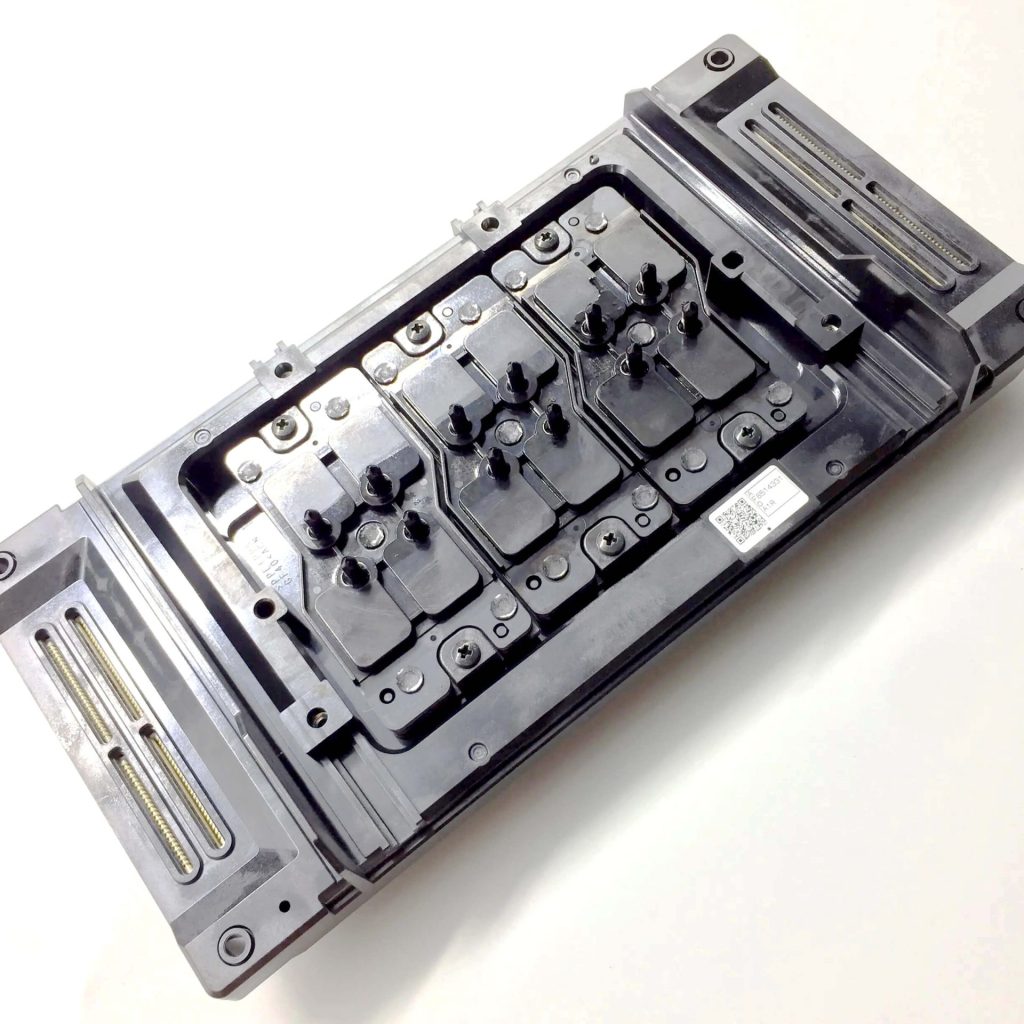

Epson FA23012 Printhead Description
The Epson FA23012 print head, also known as FA23001, is suitable for the Epson SureColor P10000 and Epson SureColor P20000 printers. The width of the nozzle array of the printhead is 2.64 times that of the previous model, reaching 2.64 inches. The number of nozzles is 2.4 times that of the previous model, with 800 nozzles per color. The entire quantity of the printhead reaches 8000.
Epson FA23012 Print Head Specifications
| Ink Type | Aqueous |
| Type | PrecisionCore MicroTFP printhead |
| Number of Nozzles | 8,000 |
| Nozzle Rows | 10 rows |
| Max. Number of Color inks | 10 colors |
| Effective Print Width | 2.64 inches |
| Minimum Ink Droplet | 3.5pl |
| Maximum Resolution | 2400*1200dpi |
