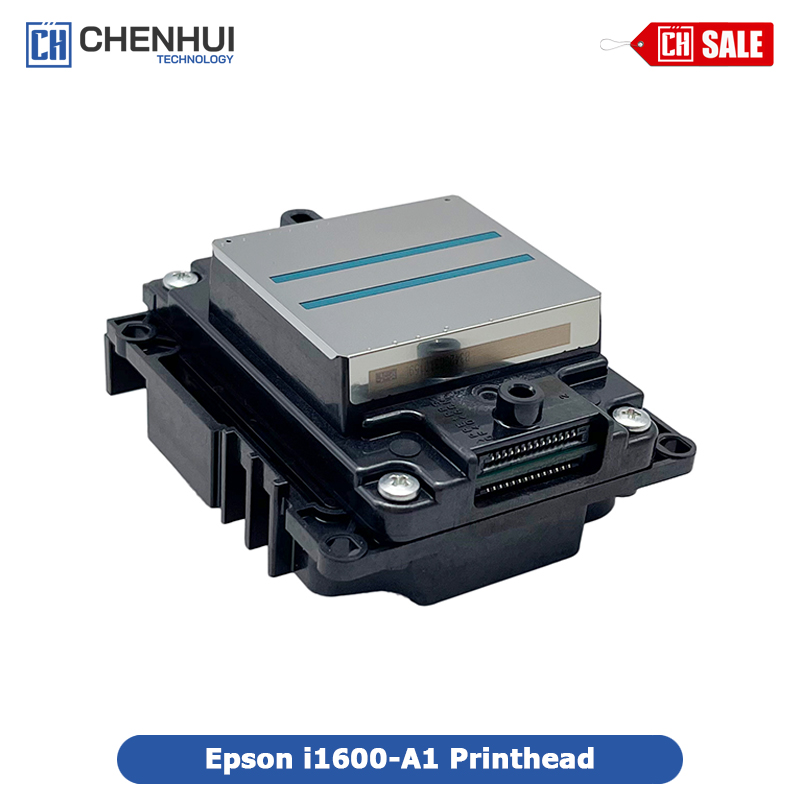

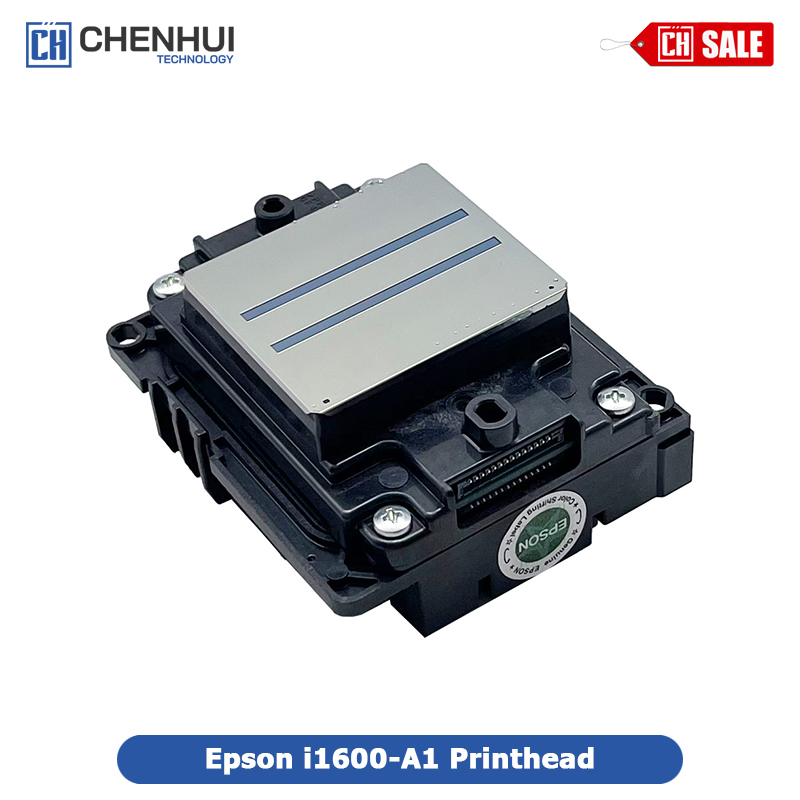

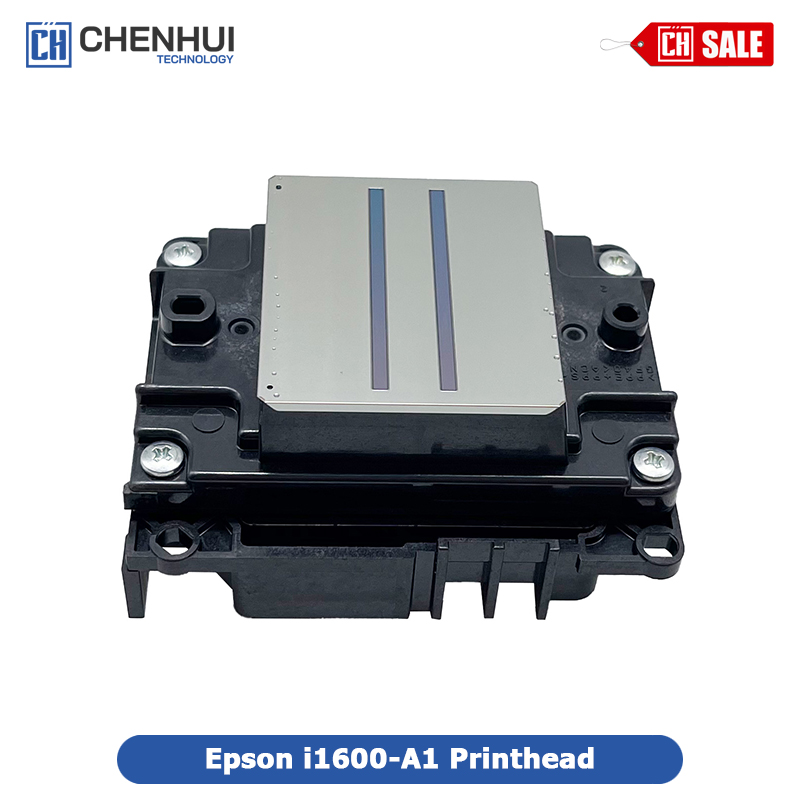

The Epson i1600-A1 Printhead is a high-performance, cost-effective 1.33-inch-wide MEMs printhead designed for water-based ink applications, including DTF, textile, sublimation, and labeling. Built on Epson’s PrecisionCore MicroTFP technology, it delivers outstanding 600 dpi native resolution, ideal for high-speed, high-quality production environments.
The Epson i1600 printhead is a new type of printhead released by EPSON in 2023. It has a precise internal structure, accurate ink placement, and consistent ink droplet size. The Epson i1600 is divided into three series: the A1 series is suitable for water-based ink, the U1 series is suitable for UV ink, and the E1 series is suitable for eco-solvent ink.
It has the same specifications as the I3200 in terms of size, nozzle resolution, and drop ejection performance. The difference is that the i1600 printhead has 1,600 nozzles (half of the I3200 printhead), and the original 8 channels have become 4 channels. Using the i1600 printhead, you can basically achieve the high precision of the I3200 printhead and meet the high-quality requirements for finished products. Although its printing speed is relatively slow, it is more cost-effective! It can be said that the I1600 printhead is an economical alternative to the I3200 printhead.
The i3200 has 3200 nozzles, high resolution (600dpi/color), and can achieve up to 4 color outputs. The printing speed is greatly improved, and its high speed is its biggest advantage. If you have higher efficiency requirements for printing needs, it is recommended to choose the Epson i3200 printhead.
Features of Epson i1600 A1 Printhead
- Designed for Water-Based Inks – Fully compatible with dye, pigment, and sublimation inks.
- High Printing Accuracy – Precise nozzle alignment ensures sharp text and smooth images.
- Stable Ink Firing Performance – Reliable droplet consistency for continuous production.
- Compact & Efficient Design – Ideal for desktop and industrial inkjet systems.
- Original Epson Printhead Technology – Ensures durability and consistent quality.
Epson i1600 Printhead Parameter
| Type | PrecisionCore MicroTFP printhead | |
| Model | Epson i1600-A1 Printhead | |
| Number of nozzles | 1600 | |
| Nozzle pitch/nozzle row | 1/300 inch | |
| Nozzle rows | 4 rows | |
| Nozzle Resolution | 300 npi /row 600 npi/2 rows | |
| Max. number of color inks | 4 colors | |
| Effective print width | 33.8 mm (1.33 inches) | |

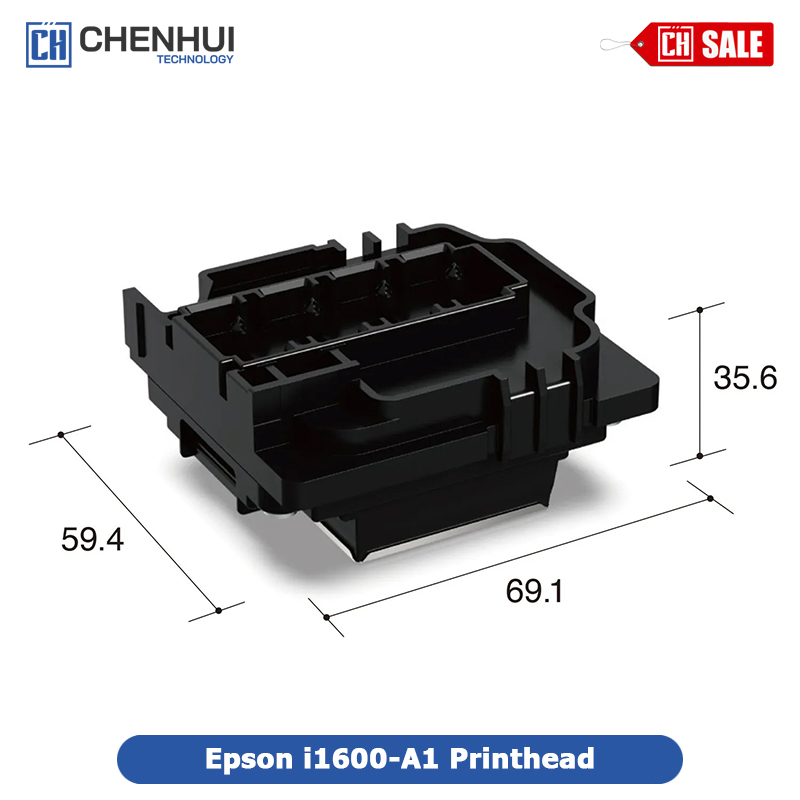

| Width x Depth x Height | 69.1x 59.4 x 35.6 mm | |
| Weight | 80 g | |
| Droplet ejection performance | Binary | 6 pl at 43.2 kHz |
| 3 levels grey scale | 6.3, 12.3 pl at 21.6 kHz | |
| 4 levels grey scale | 3.8, 6.1, 9.4 pl at 21.6 kHz | |
| Viscosity range | 3-4 mPa･s | |
| Ink type | Water-based dye / pigment / sublimation | |
Why Choose Epson i1600-A1 Printhead
- Original Epson Quality – Consistent performance and reliability
- Excellent Ink Compatibility – Works with multiple aqueous ink types
- Stable Output – Smooth gradients and sharp image details
- Wide Industry Adoption – Proven performance in DTF and sublimation printing
Why Buy from Chenhui Technology?
🛠️ 100% Genuine Parts
🚚 Fast, Reliable Shipping
🛡️ Secure Checkout & Trusted Support
💼 Bulk & Wholesale Pricing Available
How to Maintain Epson i1600 Printhead?
- Perform nozzle check and light cleaning regularly
- Use only water-based cleaning solution
- Keep the printhead capped when idle
- Maintain correct ink pressure and temperature
- Avoid long-term exposure to air without ink circulation
FAQ
Q1: What ink types does the Epson i1600-A1 support?
It supports water-based dye, pigment, and sublimation inks only.
Q2: Can the i1600-A1 be used with eco-solvent or UV ink?
No. Eco-solvent and UV inks are not compatible.
Q3: Is the Epson i1600-A1 suitable for DTF printing?
Yes, it is widely used in DTF printers with water-based ink systems.
Q4: Is this an original Epson printhead?
Yes, it is a brand-new original Epson printhead.
Q5: Do you provide technical support?
Yes, installation and maintenance guidance are available.
