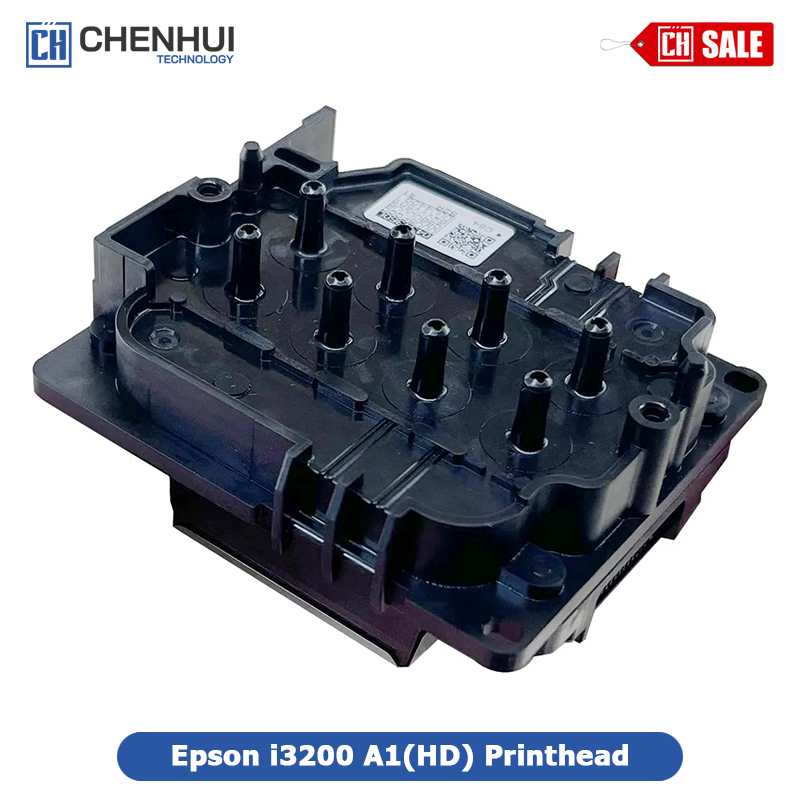

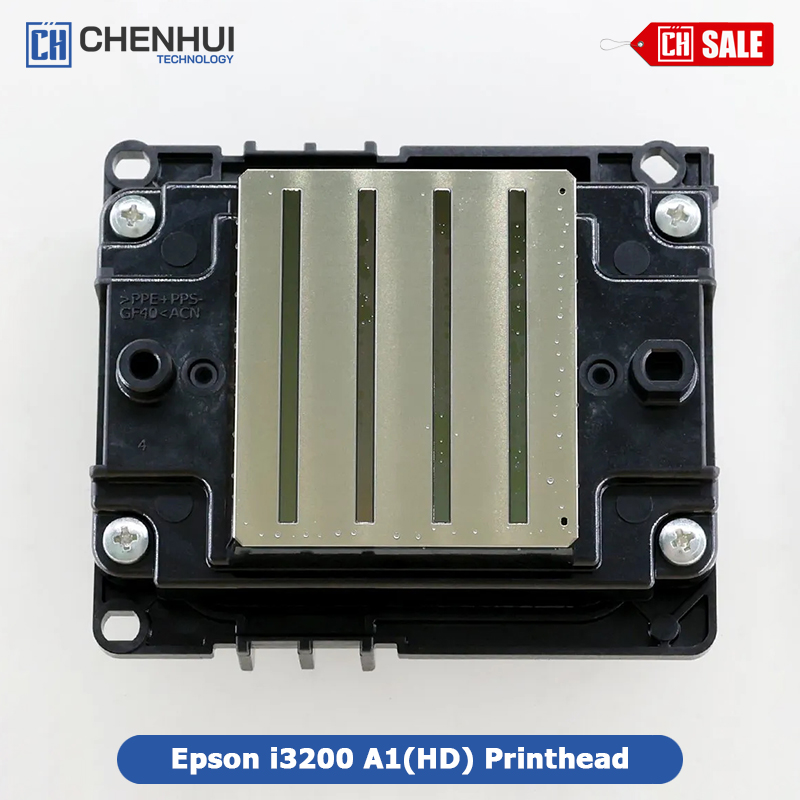

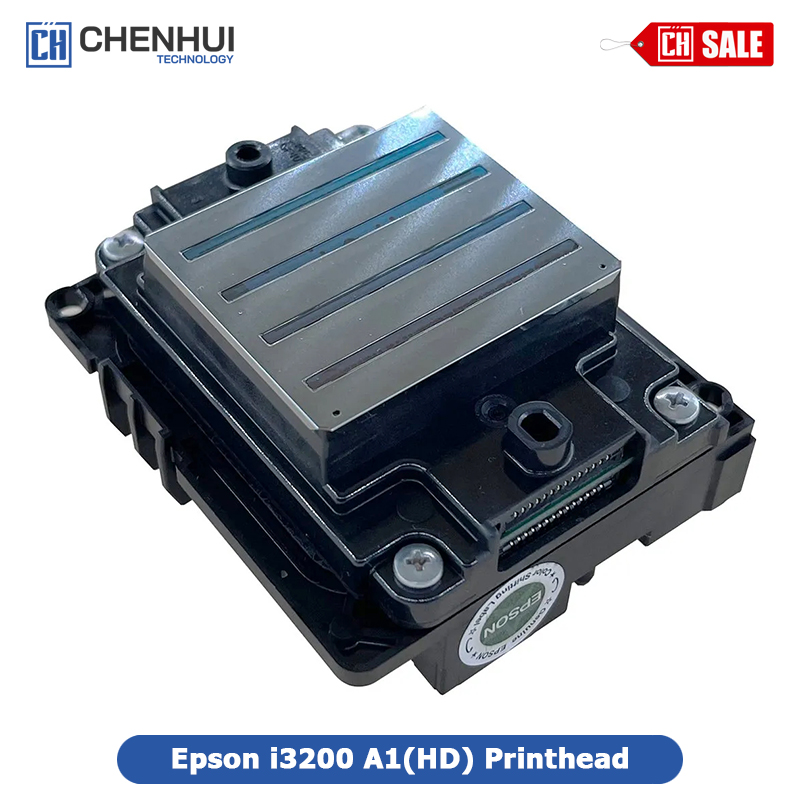

This Epson I3200-A1 HD is the 8-color high-definition variant of the I3200 printhead family. Designed exclusively for aqueous ink systems, it provides exceptional color accuracy, smooth gradients, and superior imaging performance.
The Epson I3200-A1 Water is a cost-effective, 1.33-inch wide printhead offering higher nozzle resolution than the existing I3200-A1, with up to 1200 nozzles per inch. This printhead is suitable for water-based inks.
Structurally, the Epson I3200-A1 and Epson I3200-A1 HD printheads are the same, both featuring 8 rows of 400 nozzles. However, they are not interchangeable; each printer must use the specific head it was designed for.
Compared with the standard I3200-A1 (4-color), the I3200-A1 HD features 8 independent ink channels, each driven by a single-row nozzle structure, enabling professional-grade color rendering for water-based printing applications such as photography, textile sampling, indoor graphics, and color proofing.
Features of Epson i3200 A1 HD Printhead
- 8-Color Ink Channel System – Offers extended color gamut and finer tone transitions.
- Single-Row Nozzles per Color – Delivers higher clarity and smoother gradient reproduction.
- Optimized for Aqueous Inks – Compatible with dye, pigment, dispersion, sublimation, and textile water-based inks.
- PrecisionCore MicroTFP Technology – Ensures high-speed, stable ink firing with consistent print quality.
- High-Definition Output – Ideal for detailed image work and premium-quality color printing.
- Genuine Epson Performance – Reliable structure, stable printing, and long-lasting durability.
Epson i3200 Printhead Parameter
| Type | I3200(8)-A1HD | |
| Number of nozzles | 3200 | |
| Nozzle pitch/nozzle row | 1/300 inch | |
| Nozzle rows | 8 rows | |
| Nozzle Resolution | 300 npi/row 600 npi/2 rows | |
| Max. number of color inks | 4 colours | |
| Effective print width | 33.8 mm (1.33 inches) | |
| Width x Depth x Height | 69.1 x 59.4 x 35.6 mm | |
| Weight | 82 g | |
| Droplet ejection performance | Binary | 6 pl at 43.2 kHz |
| 3 levels grey scale | 6.3, 12.3 pl at 21.6 kHz | |
| 4 levels grey scale | 3.8, 6.1, 9.4 pl at 21.6 kHz | |
| Viscosity range | 3-4 mPa･s | |
| Ink type | Water-based inks (such as sublimation, pigments, and dyes) | |
Application
- Water-based photo printers
- Indoor graphics & posters
- Textile sample printing
- Dye / pigment ink printers
- Sublimation / dispersion color tests
- High-resolution imaging
- Color labs and graphic studios
Packaging Details
- Original Epson sealed inner box
- Anti-static protective layer
- Shock-proof foam protection
- Export-grade outer carton
- Optional reinforced shipping carton
Optional Accessories
- Water-based dampers
- I3200-A1 HD ink manifold
- Ink supply tubes
- Capping station & wiper
- Printhead data cables
- Mainboard compatible with I3200-A1 HD
FAQ
Q1: Is this printhead original Epson?
Yes, this is a 100% brand-new, original Epson printhead.
Q2: What types of ink can be used with this head?
Only aqueous inks — dye, pigment, textile, dispersion, sublimation.
Not compatible with eco-solvent, solvent, or UV inks.
Q3: Is this one printhead or a bundle of 8?
This is one printhead with 8 ink channels, not 8 pieces.
Q4: Can this replace the standard I3200-A1?
Yes, if your printer supports 8-color ink routing and compatible mainboard settings.
Q5: Do you test the printhead before shipment?
No. Epson printheads are factory sealed. We provide DOA warranty only.
