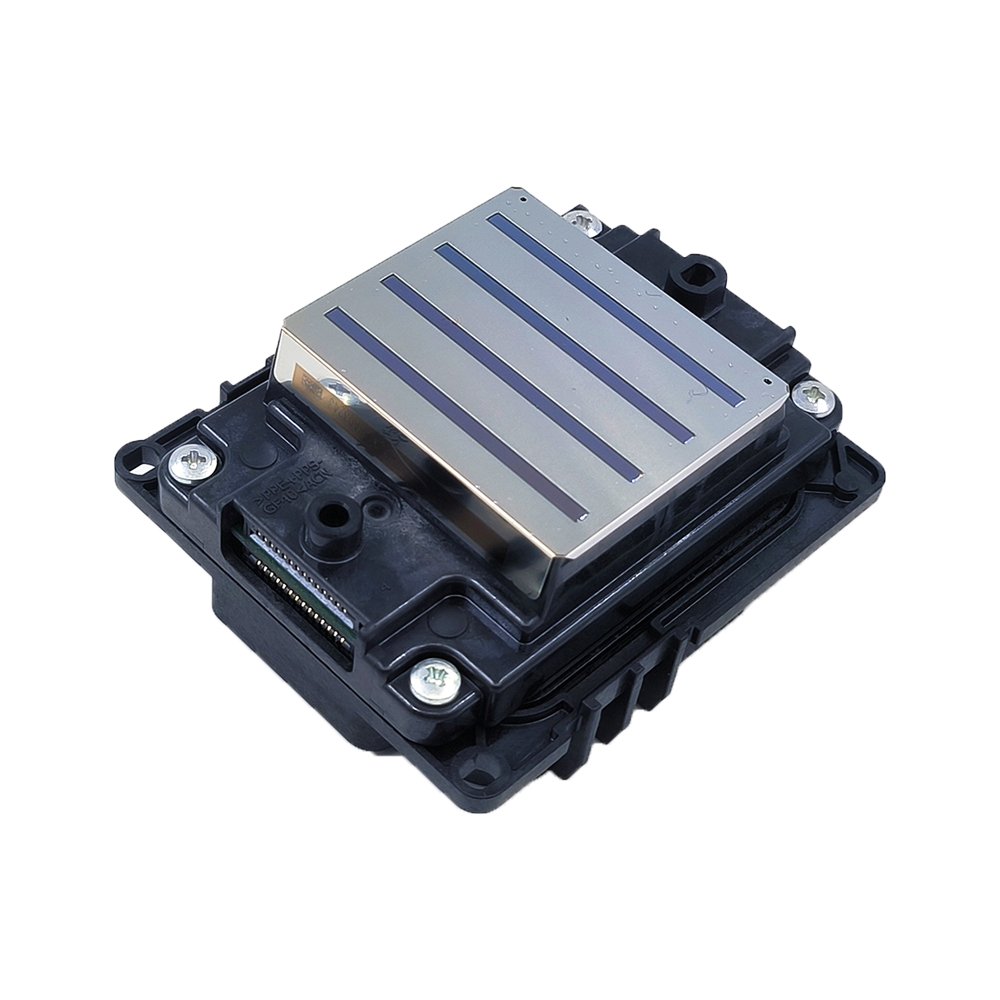

Epson i3200 A1 Printhead Description
The Epson i3200-A1 printhead is an economical series of 1.33-inch wide MEMS printheads that deliver exceptional productivity and image quality. With a high-density resolution of 600 dpi, it is specifically designed for DTF inks and is compatible with most large-format DTF printers, DTG printers, sublimation printing, and cardboard printing.
The Epson i3200-A1 is an economical print head with excellent quality and fast and stable printing speed. The i3200-A1 printhead has 3,200 nozzles (up to 600 dpi/2 lines), supports 4 water-based ink channels, and has variable droplet technology for grayscale printing.
The Epson I3200-A1 and I3200-A1 HD printheads share the same structure, both featuring 8 rows of 400 nozzles, but they are not interchangeable. The I3200 supports 4 colors with 4 manifold inputs, each color using 2 nozzle rows. The I3200 HD supports 8 colors with 8 inputs, each color using 1 nozzle row.
Epson i3200 A1 Printhead Specifications
| Type | PrecisionCore MicroTFP printhead | |
| Number of nozzles | 3200 | |
| Nozzle pitch/nozzle row | 1/300 inch | |
| Nozzle rows | 8 rows | |
| Nozzle Resolution | 300 npi/row 600 npi/2 rows | |
| Max. number of color inks | 4 colours | |
| Effective print width | 33.8 mm (1.33 inches) | |
| Width x Depth x Height | 69.1 x 59.4 x 35.6 mm | |
| Weight | 82 g | |
| Droplet ejection performance | Binary | 6 pl at 43.2 kHz |
| 3 levels grey scale | 6.3, 12.3 pl at 21.6 kHz | |
| 4 levels grey scale | 3.8, 6.1, 9.4 pl at 21.6 kHz | |
| Viscosity range | 3-4 mPa?s | |
| Ink type | Water-based inks (such as sublimation, pigments, and dyes) | |
Epson i3200 Printhead Applications
- Sublimation printing (for polyester fabrics);
- Direct-to-garment (DTG) printing with water-based pigment inks;
- Water-based digital wallpaper, label, and banner production lines;
- Not suitable for UV ink or solvent ink systems.
