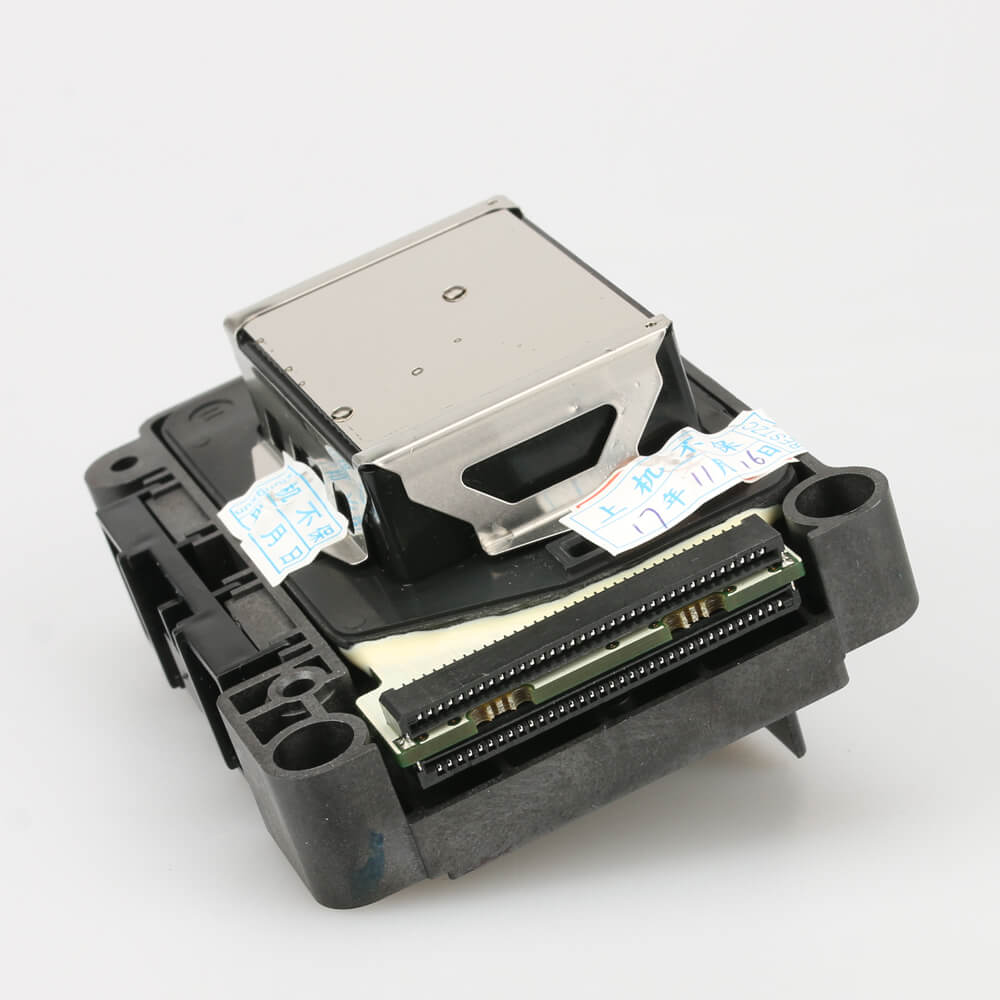

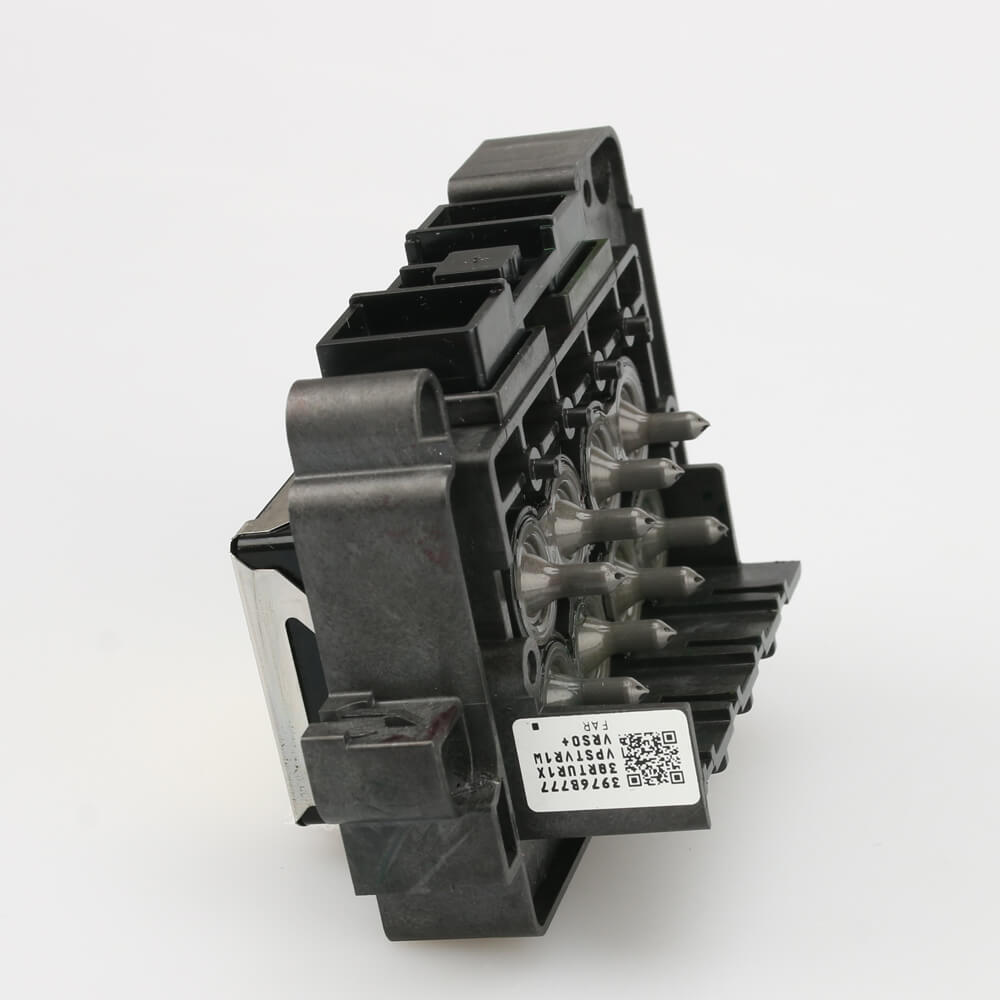

Epson DX7 Printhead F196000 Description
The DX7 Series Epson F196000 Printhead, also known as F196010, utilizes Micro-Piezo technology to ensure precise droplet placement, producing highly detailed prints at a native resolution of 1440 dpi. It is compatible with the Epson Stylus Pro 3800 printer and the Epson Stylus Pro 3880 printer.
Easily adapt to diverse printing requirements with droplet sizes ranging from a tiny 1.5 picoliters to a substantial 21 picoliters. This adaptability enables both fine details and bold, vivid graphics, making it suitable for various applications.
With an impressive firing frequency of 8 kHz, this printhead not only guarantees accuracy but also ensures fast and efficient printing. Experience reduced wait times and a more streamlined printing process.
Epson DX7 Printhead F196000 Specifications
| Model Number | F196000 |
| Technology | Micro-Piezo |
| Native Resolution | 1440 dpi |
| Min. Droplet Size | 1.5pl |
| Max. Droplet Size | 21pl |
| Total Amount of Nozzles | 1440 (8 lines * 180 nozzles) |
| Firing Frequency | 8 kHz |
| Compatible Ink | Oil-based ink |
| Compatible printers | For EPSON 3890 3880 3885 P600 |
