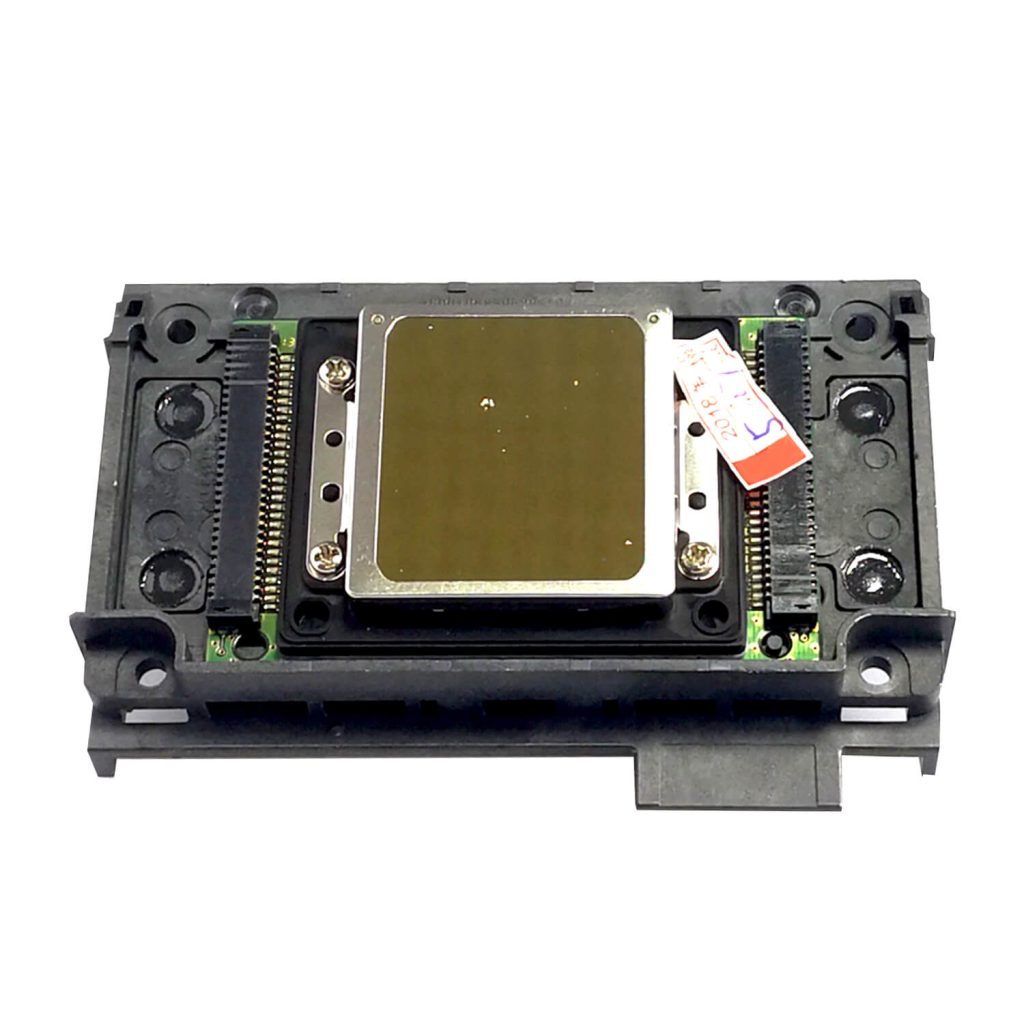

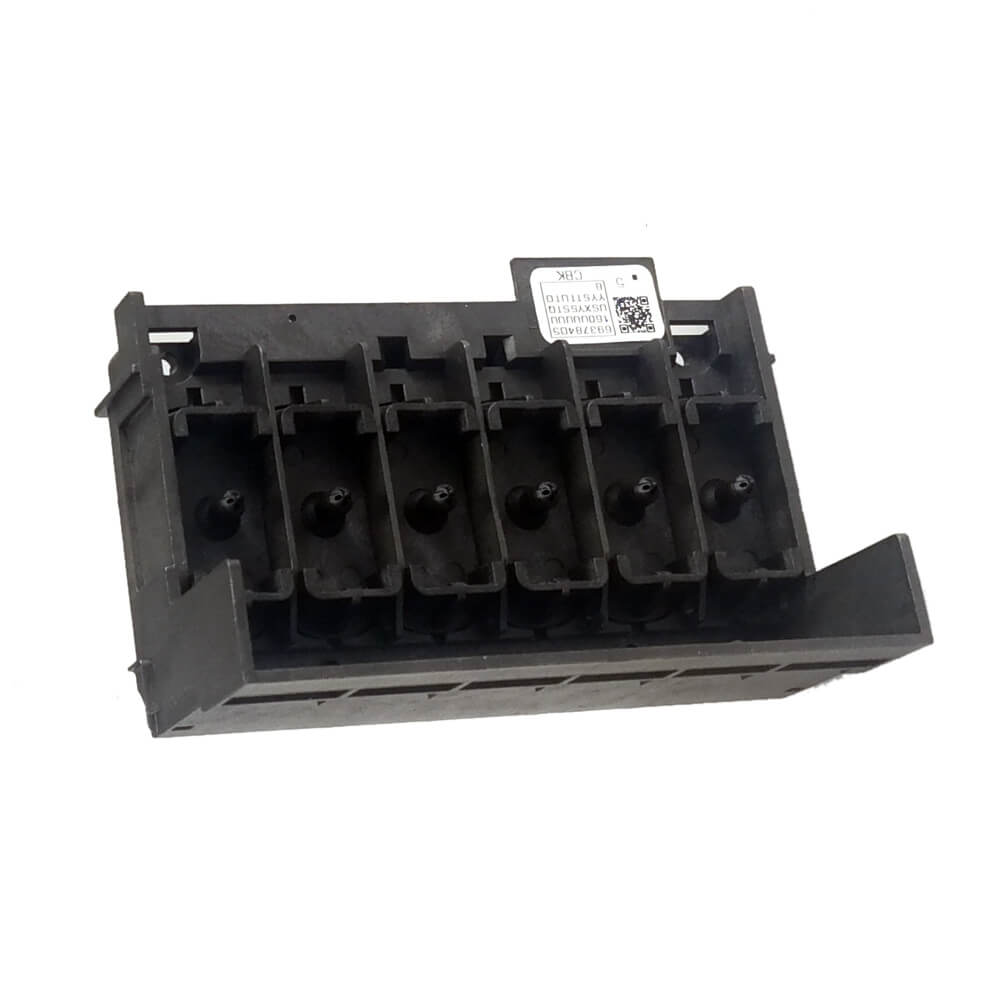

Epson XP600 Printhead Disassembled New Without Adapter Description
The Epson XP600, released around 2018, is a 6-channel printhead. It is a disassembled printhead of an Epson F1080. It is designed for water-based ink, but everyone uses it to print eco-solvent ink, UV ink, and thermal transfer ink. It is mainly used for small eco-solvent ink printers, roll UV printers with a width of 1.6-1.8, and flatbed UV printers with a size of 6040 or 9060 due to the low price and perfect printing effect.
This printhead supports multiple ink types, including sublimation ink, DTF ink, and solvent ink, enabling a broad range of applications. It is suitable for sublimation printing on T-shirts, mugs, and fabrics, as well as DTF heat transfer printing on garments and textiles. The Epson XP600 printhead is also compatible with small UV flatbed and roll-to-roll printers, suitable for printing phone cases, signage, and various promotional materials.
Tip: Replace printhead cables together with the new printhead for best performance and reliability.
Epson XP600 Printhead Disassembled New Without Adapter Specifications
| Technology | Micro-Piezo |
| Dimensions | 84.9 x 57.2 x 42.6 mm |
| Weight | 60 g |
| Number of nozzles | 1080 |
| Nozzle pitch/nozzle row | 1/180 inch |
| Nozzle rows | 6 rows |
| Max. number of colour inks | 6 colours (180 dpi/colour) |
| Nozzle resolution | 180 npi/row, 360 npi/2 rows |
| Effective print width | 25.4 mm |
| Jetting Frequency | 46 kHz (single mode); 11.52 kHz (multimode) |
| Droplet volumes | 4.5, 9, 20, 40 pl (multimode) |
| Viscosity range | 3-5 mPa?s |
| Ink type | UV ink, eco-solvent ink |
