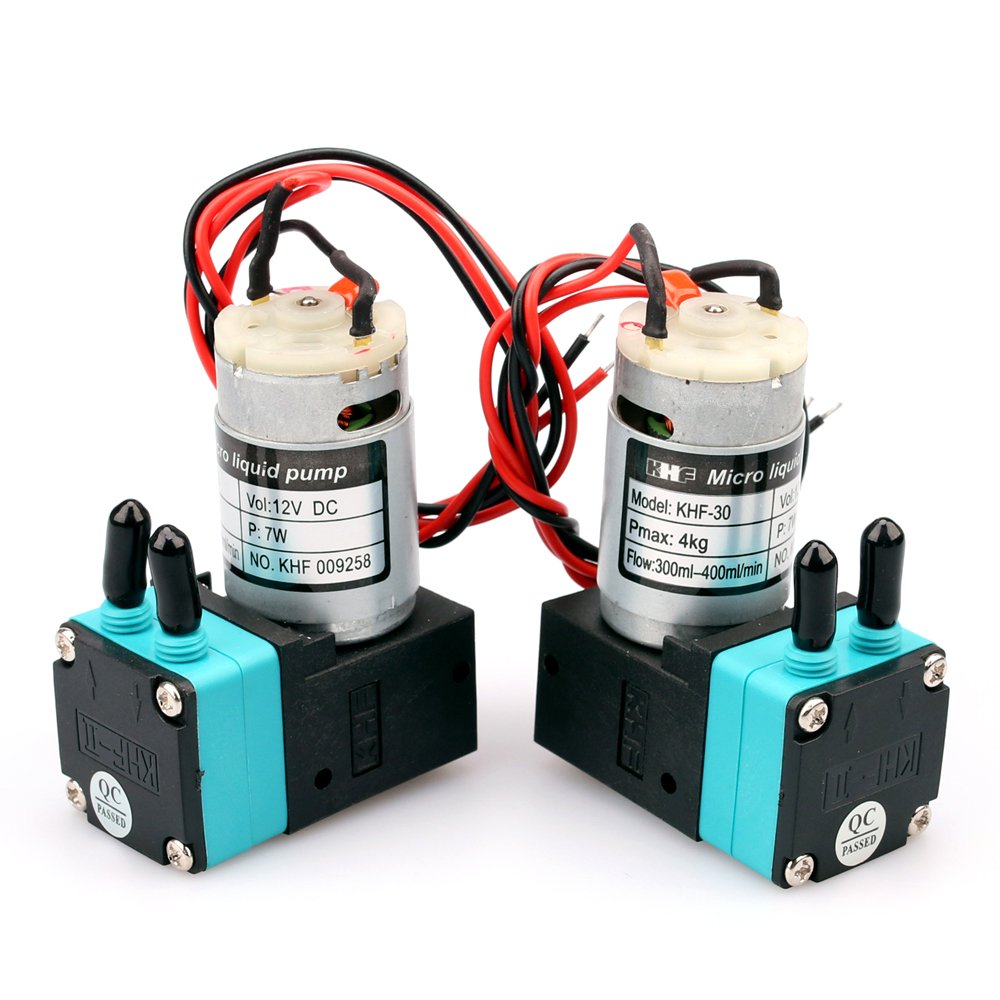

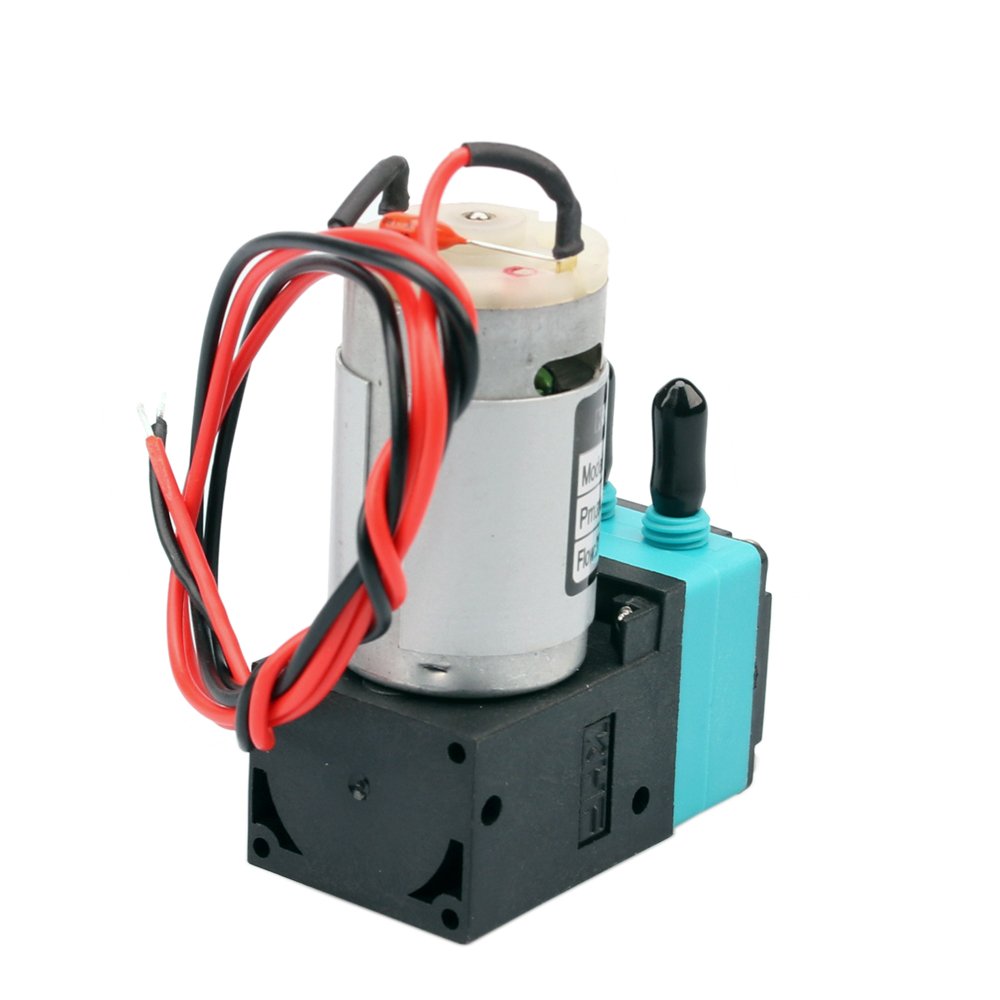

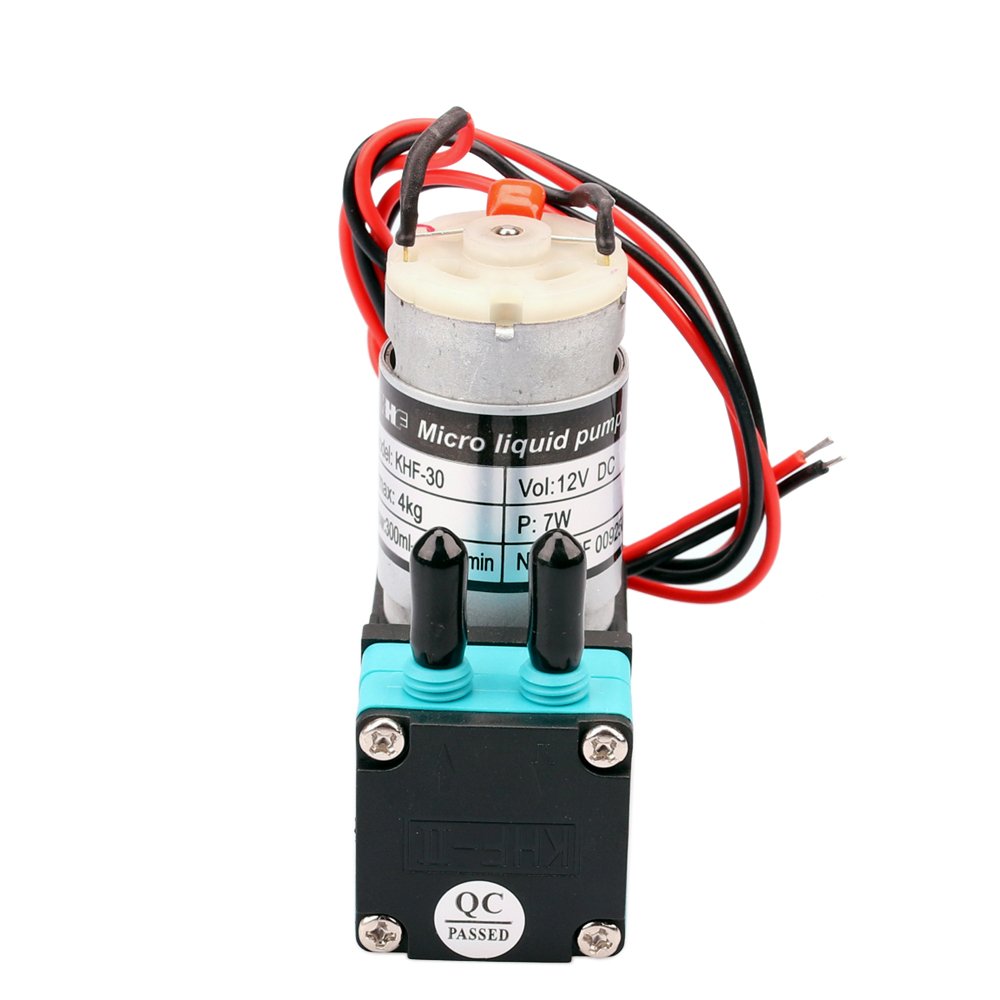

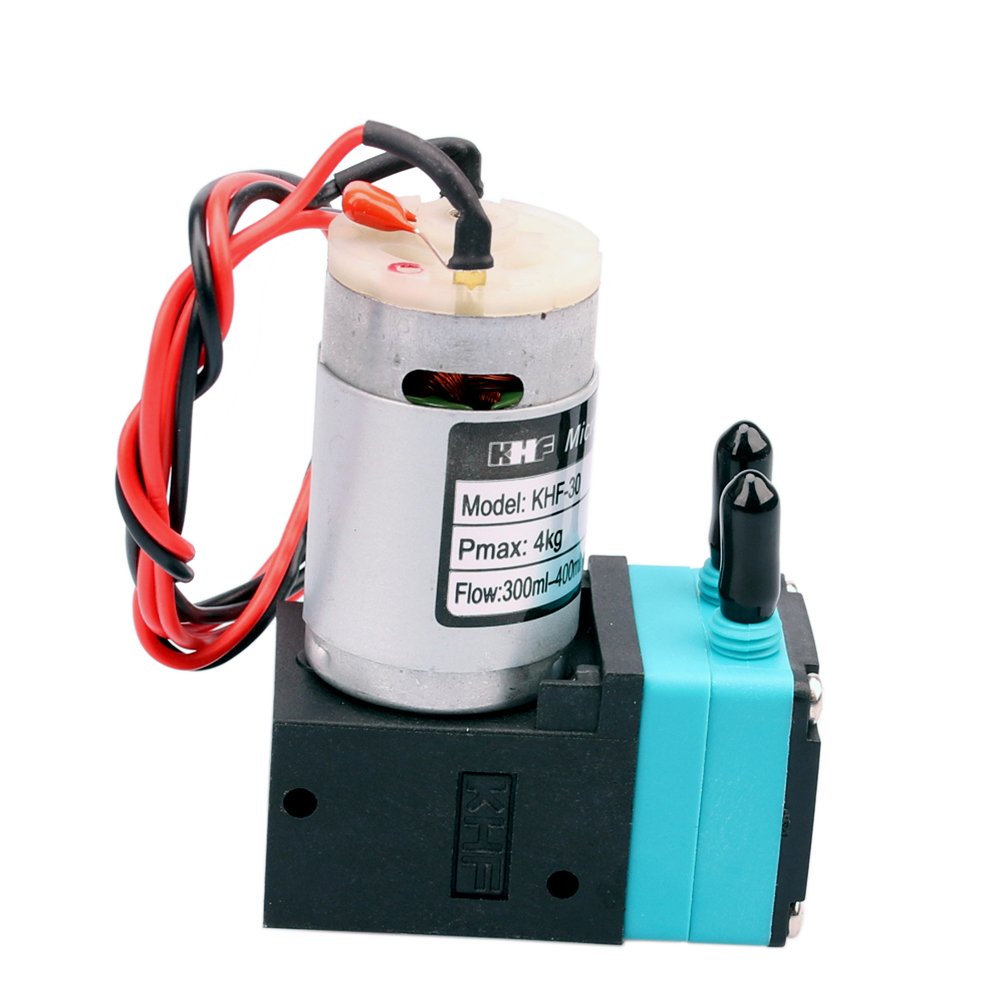

KHF-30 Printer Ink Pump (7W-12V) Description
1. Provides Stable Ink Flow
The KHF-30 printer ink pump acts as the ¡°heart¡± of the ink supply system. It delivers ink from the main cartridge or tank to the printhead, ensuring consistent ink flow during printing.
2. Prevents Ink Starvation and Air Bubbles
KHF-30 Ink pumps help eliminate air bubbles in the ink lines. This prevents issues like ink starvation, nozzle clogging, or inconsistent output, especially in high-speed printing environments.
3. Maintains System Pressure
In negative pressure or positive pressure systems, KHF-30 ink pumps help maintain the correct pressure balance. This ensures smooth and accurate ink delivery to the printhead.
4. Supports Printhead Cleaning
During the printhead cleaning cycle, the KHF-30 ink pump helps draw out residual ink, air, and debris from the nozzles, keeping them clean and functional for high-quality prints.
KHF-30 Printer Ink Pump (7W-12V) Specifications
| Product Name | Voltage | Power | Flow | Ink Type | Weight |
| KHF-30 ink pump | 12V | 7W | 300-400 ml/min | Solvent/Eco-solvent ink | 164g |
KHF Ink Pump Models:
| KHF Ink Pump | |||||
| Product Name | Voltage | Power | Flow | Ink Type | Weight |
| KHF-10 ink pump | 24V | 3W | 100-200 ml/min | Solvent/Eco-solvent ink | 70g |
| KHF-30 ink pump | 12V | 7W | 300-400 ml/min | Solvent/Eco-solvent ink | 164g |
| KHF-30 ink pump | 24V | 7W | 300-400 ml/min | Solvent/Eco-solvent ink | 164g |
| KHF-30 ink pump | 24V | 7W | 600 ml/min | Solvent/Eco-solvent ink | 164g |
| KHF-10 UV ink pump | 24V | 3W | 100-200 ml/min | Solvent/Eco-solvent/UV ink | 70g |
| KHF-30 UV ink pump | 24V | 7W | 300-400 ml/min | Solvent/Eco-solvent/UV ink | 160g |
| KHF-30 Air Pump | |||||
| Product Name | Voltage | Power | Positive Pressure | Negative Pressure | Weight |
| KHF-30 air pump | 24V | 7W | 80-90 kPa | 65-70 kPa | 152g |
