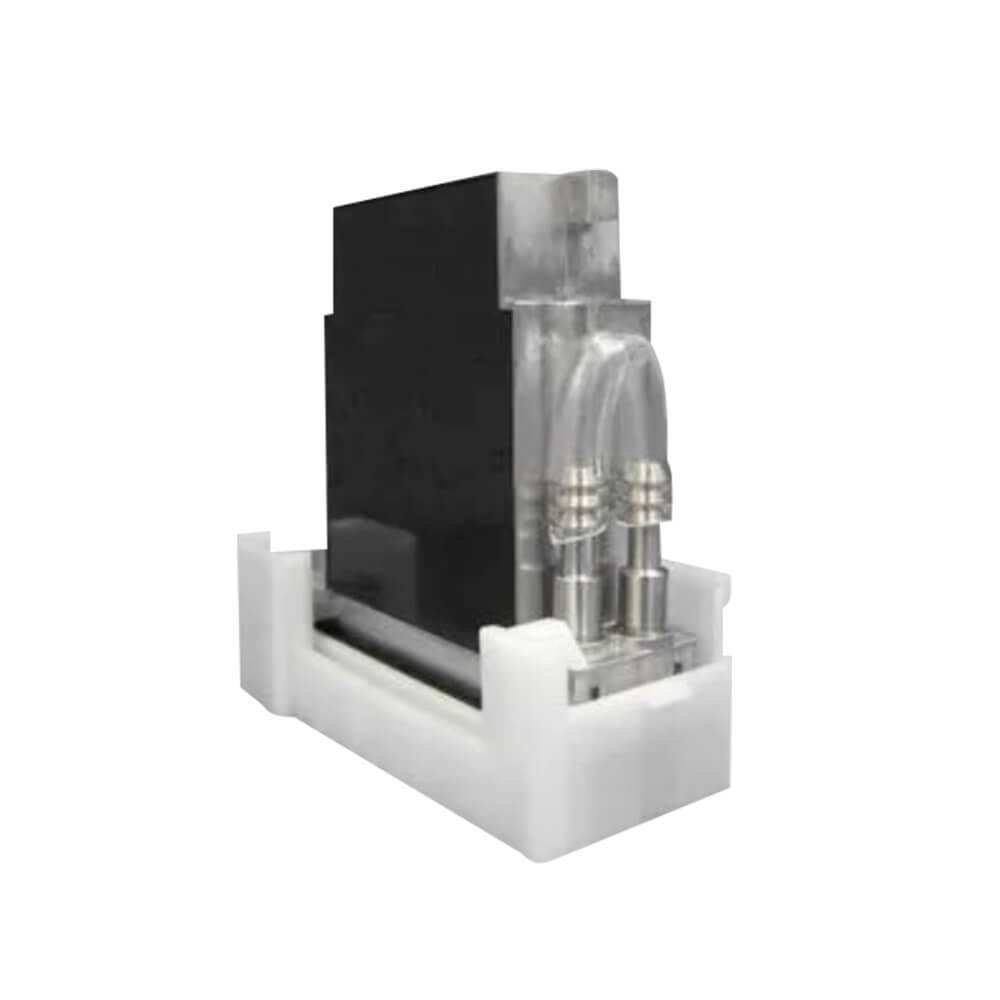

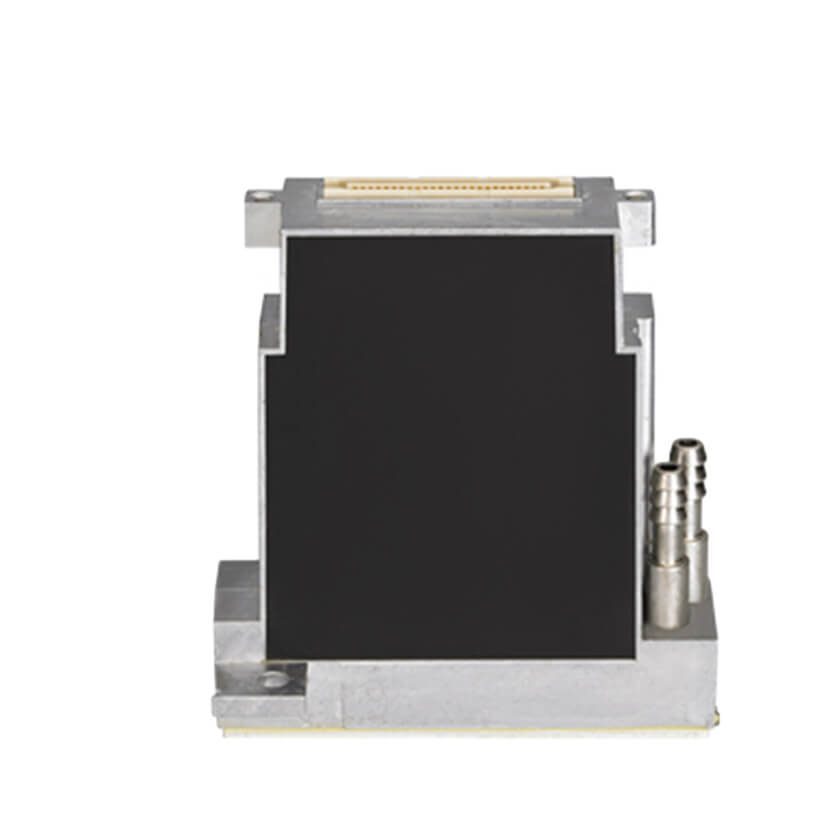

Konica KM512 LNX 35PL Printhead Description
The Konica KM512 LNX printhead features 512 nozzles with a droplet size of 35 picoliters and a native resolution of 360 dpi to achieve high-quality printing.
1. Konica 512 printheads are made of all steel, and the service life is longer.
2. Double-row ink inlet tubes and uniform flow and pressure to guarantee printing quality.
3. Double-row staggered nozzle structure achieves higher inkjet accuracy.
4. Unique nozzle anti-blocking function and nozzle automatic exhaust function ensure that there will be no blockage and ink interruption during use.
5. Konica printheads are fully enclosed, ensuring they are waterproof and anti-aging.
Konica KM512 LNX 35PL Printhead Specifications
| Technology | Piezo Drop-On-Demand (Shared wall 3 cycle) |
| Native Resolution | 180 dpi ¡Á 2 lines = 360 dpi |
| Cal. Droplet Size | 35 picoliters |
| Tot. Amount of Nozzles | 512 (256 nozzles per line) |
| Nozzle Spacing | 70.5 ¦Ìm (141 ¦Ìm ¡Á 2 lines) |
| Print Width | 36.1 mm |
| Firing Frequency | 10 kHz |
| Ink Compatibility | Solvent Ink |
| Heater | Not integrated |
