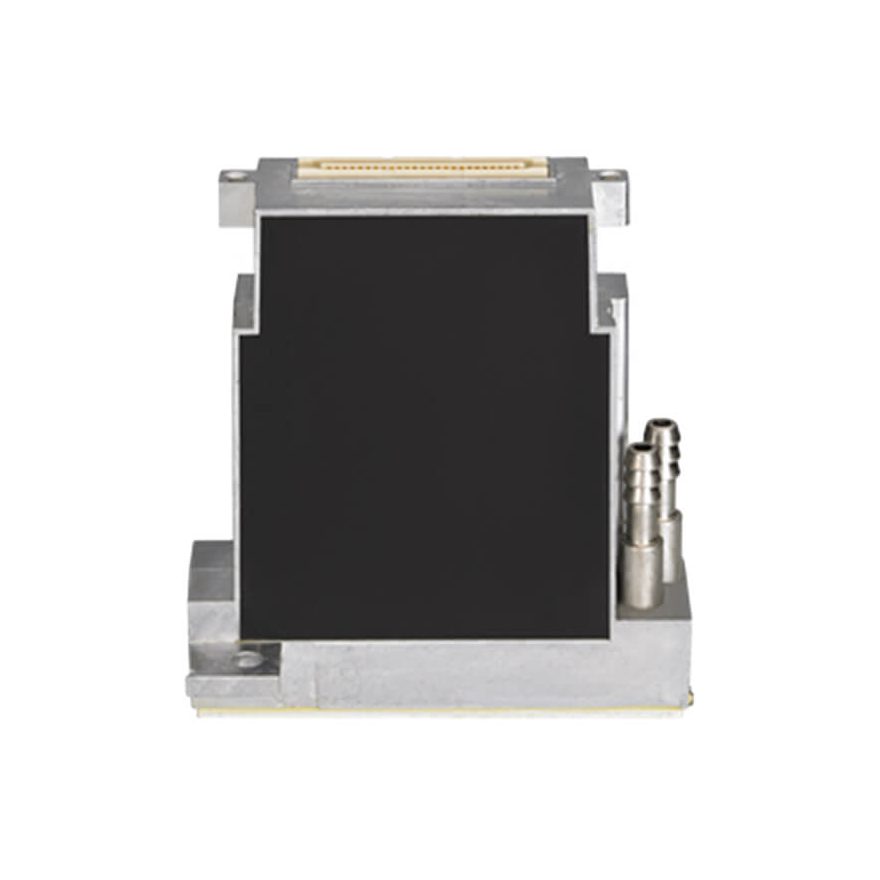

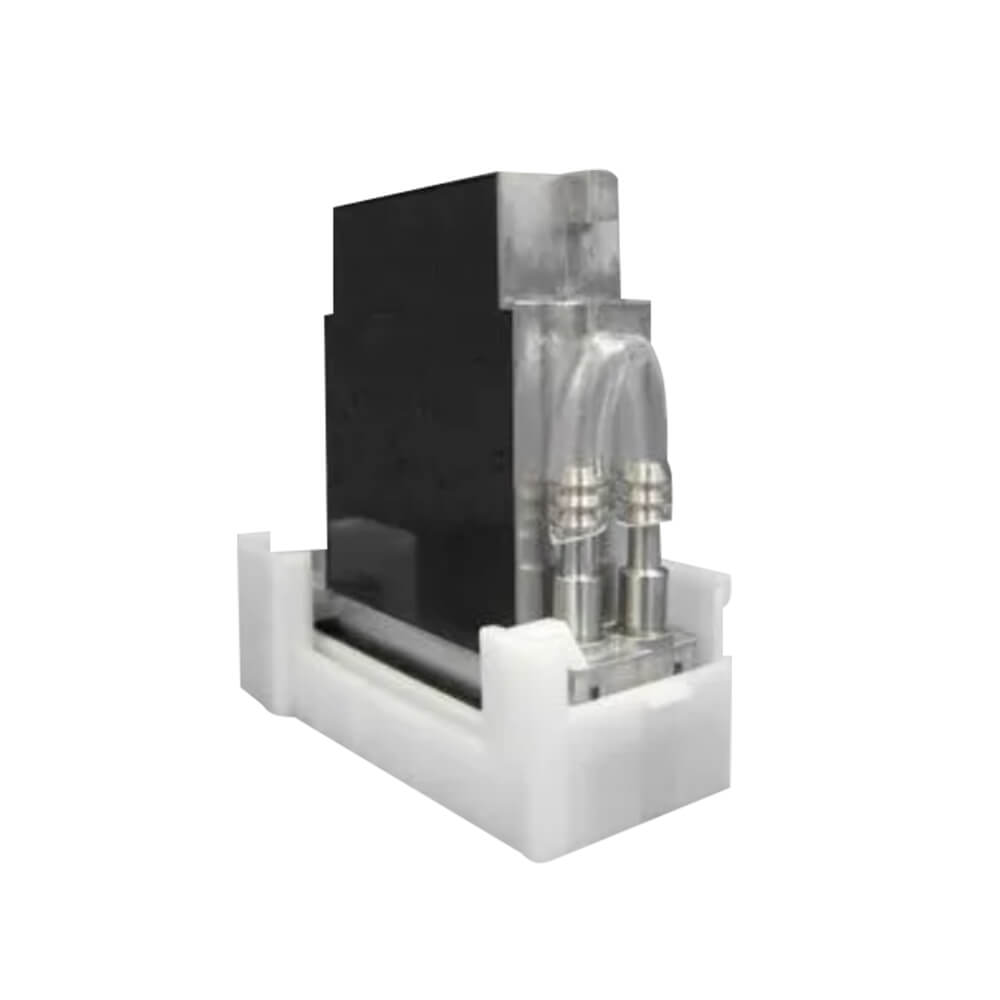

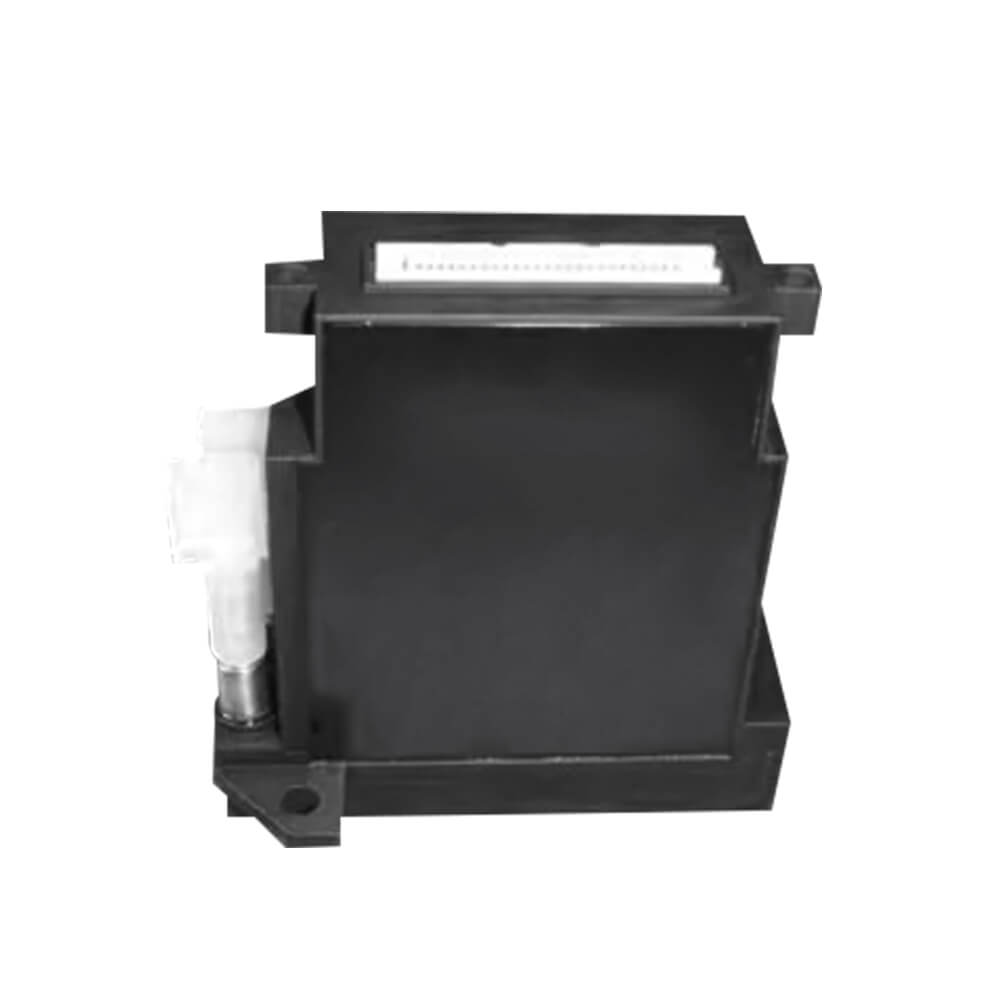

Konica KM512 MN 14PL Printhead Description
The Konica Minolta KM512 MN print head is a robust, shear-mode piezo-on-demand print head usable in both binary and 4-level grayscale modes, providing variable drop size and depicting images with rich, vivid layers without the use of additional print heads.
1. Konica printheads are made of all steel, and the service life is longer.
2. Double-row ink inlet tubes and uniform flow and pressure to guarantee printing quality.

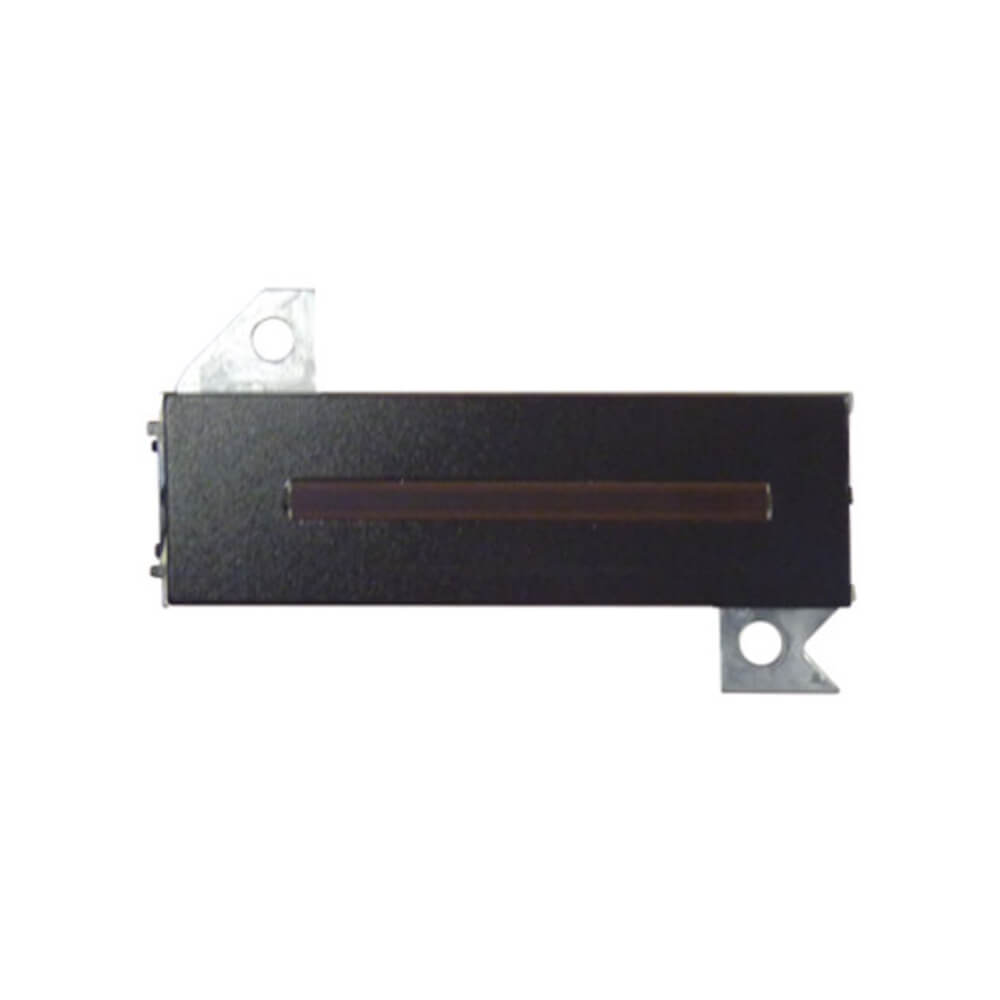

3. Double-row staggered nozzle structure achieves higher inkjet accuracy.
4. Unique nozzle anti-blocking function and nozzle automatic exhaust function ensure that there will be no blockage and ink interruption during use.
5. Konica printheads are fully enclosed, ensuring they are waterproof and anti-aging.
Konica KM512 MN 14PL Printhead Specifications
| Technology | Piezo Drop-On-Demand (Shared wall 3 cycle) |
| Native Resolution | 180 dpi ¡Á 2 lines = 360 dpi |
| Cal. Droplet Size | 14 picoliters |
| Tot. Amount of Nozzles | 512 (256 nozzles per line) |
| Nozzle Spacing | 70.5 ¦Ìm (141 ¦Ìm ¡Á 2 lines) |
| Print Width | 36.1 mm |
| Firing Frequency | 12.8 kHz |
| Ink Compatibility | Oil-based, solvent, and UV ink |
| Heater | Not integrated |
| Grey-scale | 4-level |
