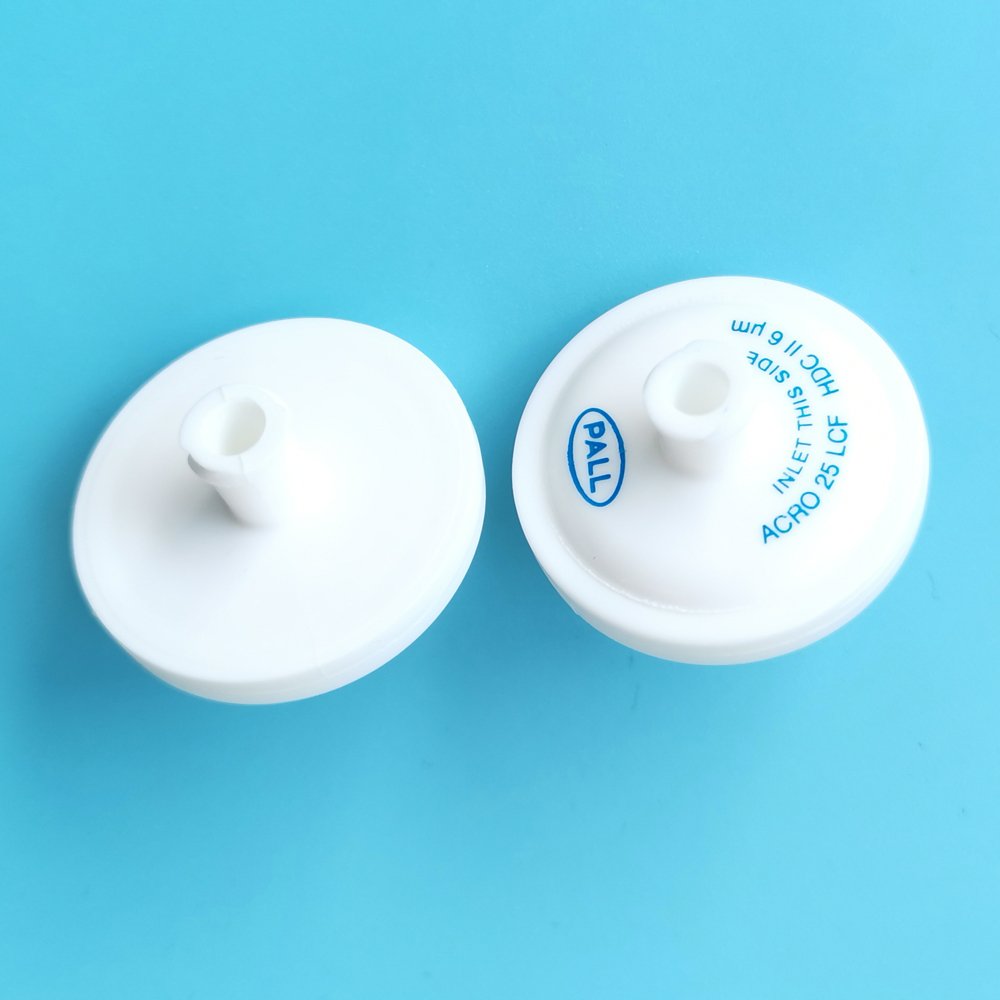

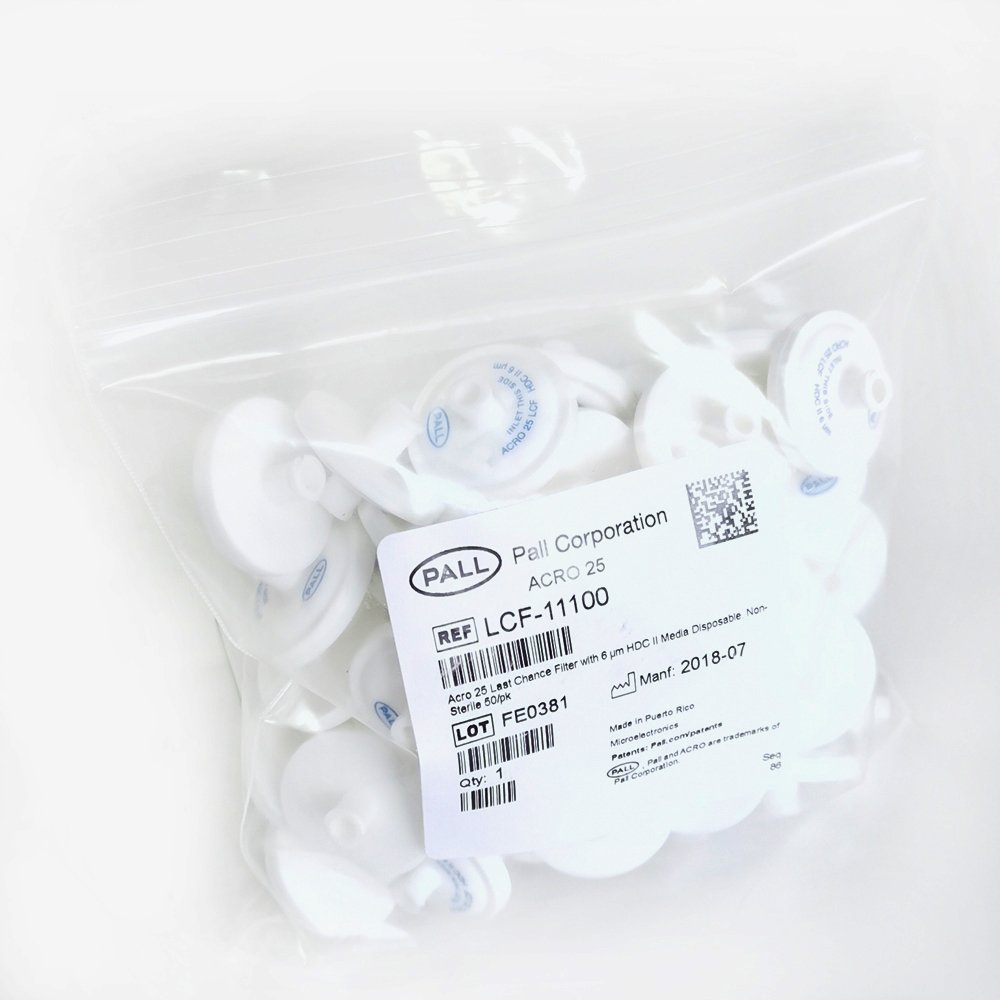

PALL Disc Filter LCF-11100 6 micron Description
1. This original Pall ink filter LCF-11100-6U white Last Chance Filter (LCF) is suitable for large-format printers, inkjet coding machines, photo inkjet printers, UV printers, and digital textile printers.
2. The maximum particle size of 6 ¦Ìm is allowed to pass through when the solution containing impurities passes through the ink filter, improving the ink quality and the printing resolution of printers.
5. With advanced Pall¡¯s premium syringe filter technology, the original PALL part (number LCF-11100) is characterized by a large effective filter area in a compact design, capable of handling a wide range of flow rates without print head starvation.
PALL Disc Filter LCF-11100 6 micron Specifications
| Type | Acro? Disc 25 Last Chance Filter (LCF) |
| Pore Size | 6 microns |
| Outlet connection | Female Luer-Lok compatible |
| Disc diameter | 29.97 mm (1.18¡å) |
| Disc width | 20.57 mm (0.81¡å) (Luers Inc.) |
| Maximum Operating Pressure | 5.2 barg / 75 psig @ 20 ¡ãC / 68 ¡ãF |
| Use | Air / Liquid |
| Solvent resistant | Yes |
| UV resistant | Yes |
Printer Compatibility
EFI Rastek H650, EFI Rastek R3225, Truepress Jet2500UV, Impika IEngine 1000
Mutoh Rockhopper 38 (Falcon Jr), Mutoh Rockhopper 48 (Falcon Outdoor), Mutoh Rockhopper 62 (Falcon Outdoor)
PALL Disc Filter Models:
| PALL Disc Filters | |
| Models | Filtration Precision |
| LCF-11100 | 6 ¦Ìm |
| LCF-12100 | 10 ¦Ìm |
| LCF-13100 | 20 ¦Ìm |
| LCF-23100 | 20 ¦Ìm |
| LCF-23110 | 20 ¦Ìm |
| LCF-22110 | 10 ¦Ìm |
| LCF-59400 | 0.45 ¦Ìm |
