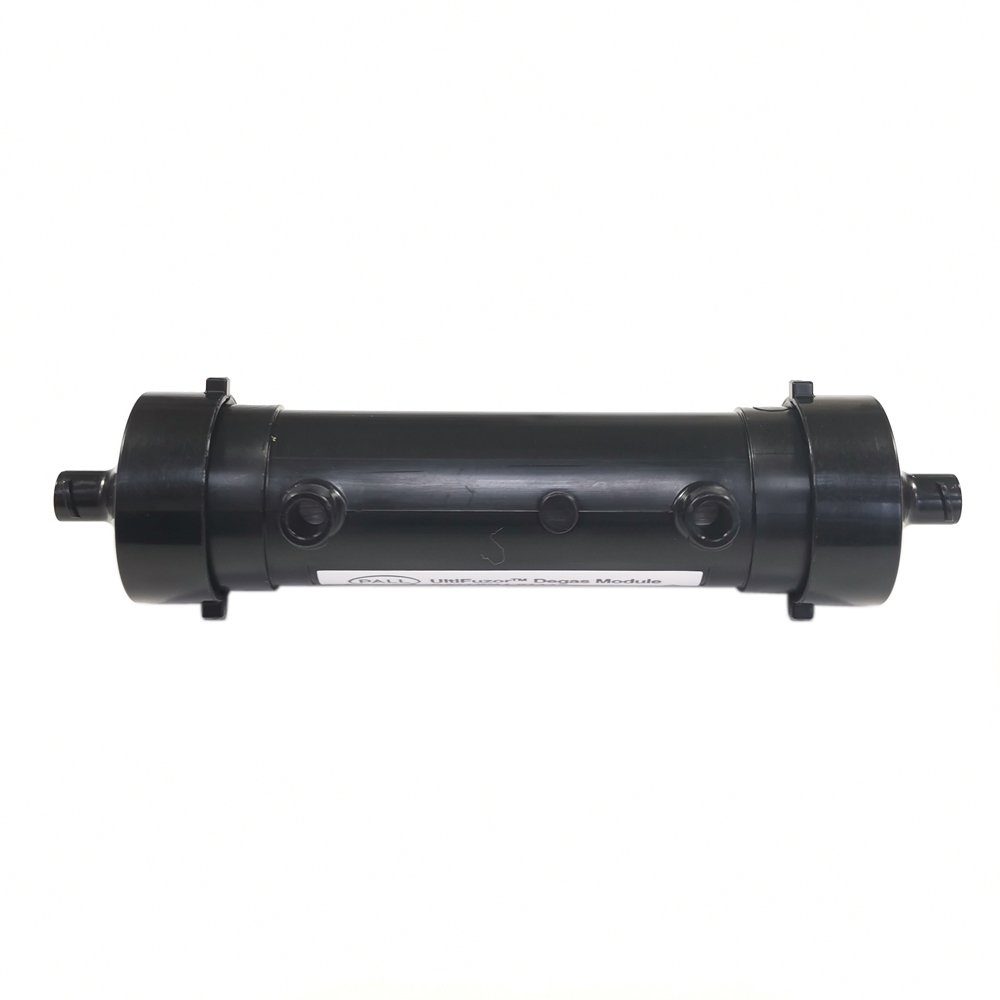

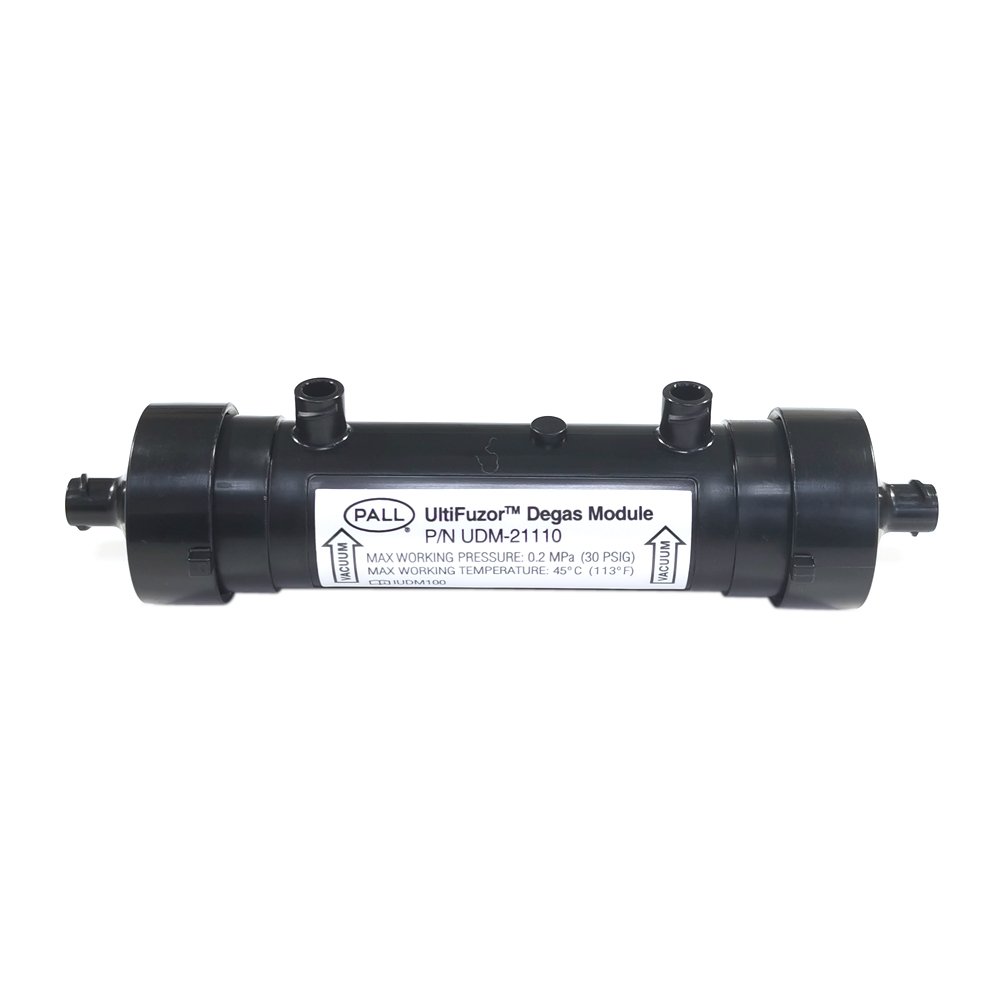

Pall Degas Module PN UDM-21110 Description
The degassing module is a hollow fiber membrane contactor specifically designed to efficiently remove dissolved gases from inkjet inks within on-board inkjet printing systems. It features standard female luer lock ports for both the ink inlet/outlet and vacuum ports, and includes extra connectors for Durst printers, with no additional connectors needed for Oc¨¦ printers.

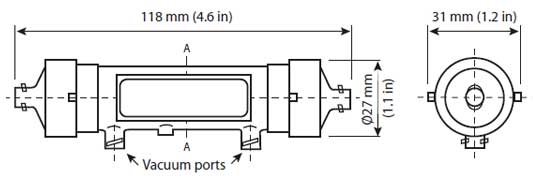

This module is compatible with any inkjet printer requiring degassing and can operate using one or both vacuum ports. It serves as an effective alternative to the Oc¨¦ Arizona 02-057 / Membrana Degas Module and the DIC EF-G2 degasser. This is the original Pall Degasser, measuring 12 cm in length and 2.7 cm in diameter.
Pall Original Degas Module PN UDM-21110 Specifications
| Maximum operating pressure | 0.2 MPa @ 45 ¡ãC / 30 PSI @ 113 ¡ãF |
| Operating temperature | 45 ¡ãC / 113 ¡ãF |
| Flow range | 1 ¨C 100 mL/min |
| Suitable for | UV inks |
Printer Compatibility
Acuity LED 1600
Durst Rho 600 Basic, Durst Rho 600 Pictor, Durst Rho 600 Rapid, Durst Rho 800 HS, Durst Rho 800 Presto
EFI Vutek GS2000, EFI Vutek GS2000, LXEFI Vutek GS3200, EFI Vutek GS3250, EFI Vutek GS3250r, EFI Vutek GS5000r,
EFI Vutek QS2000, EFI Vutek QS3200, EFI Vutek QS3200r, EFI Vutek QS3220, EFI Vutek QS3250r
