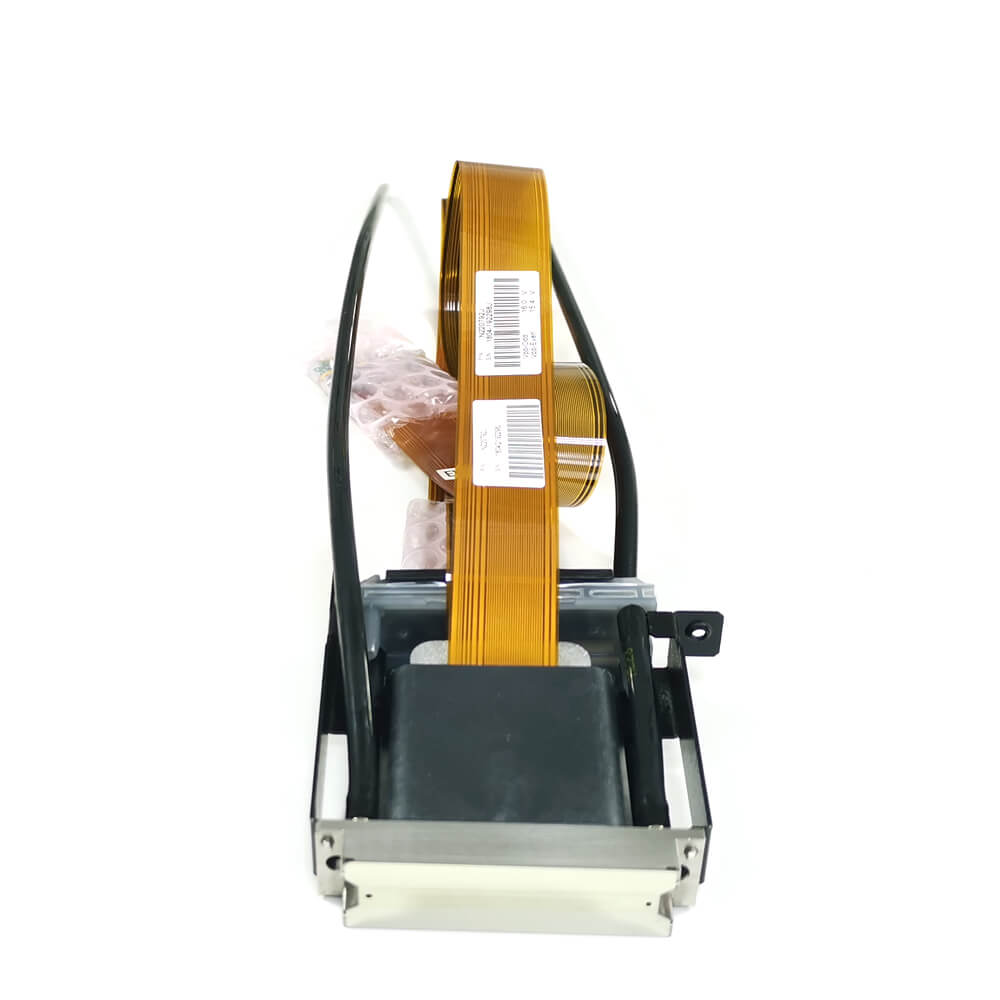

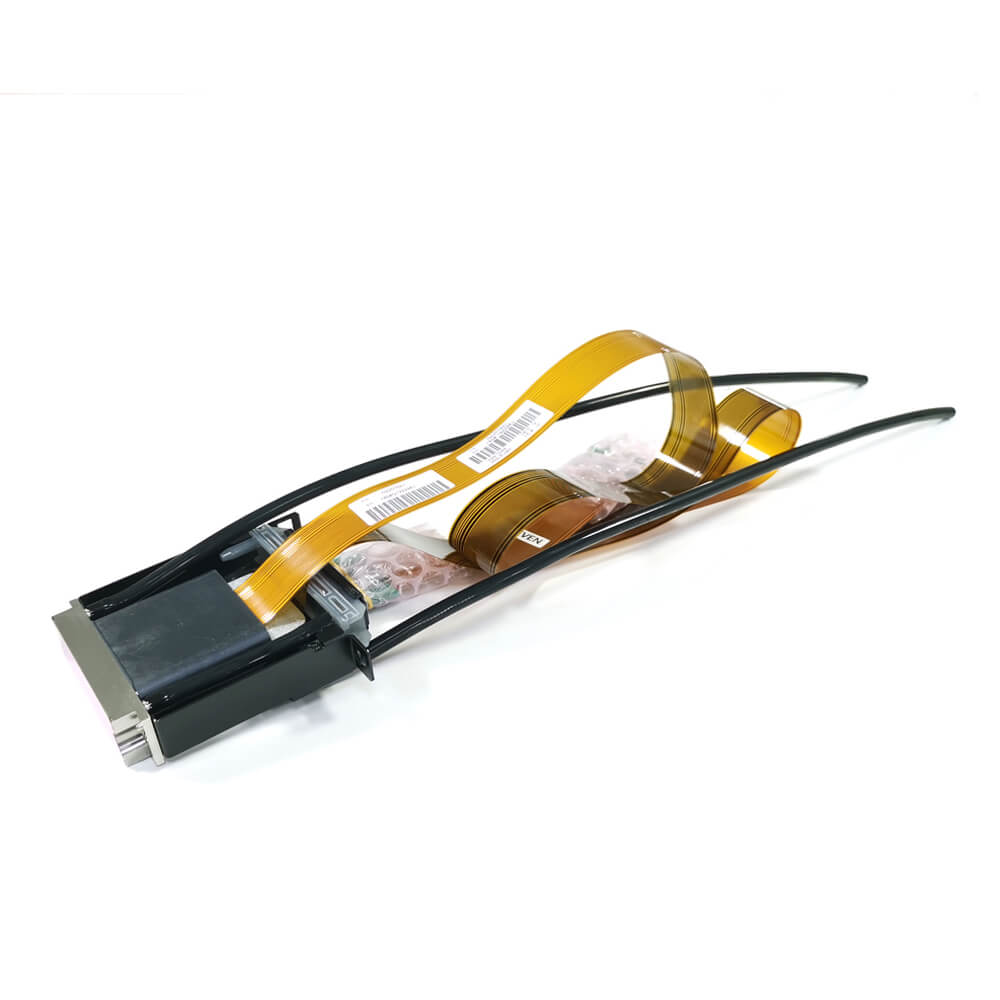

Mimaki UJF3042 Printhead MP-M010010 Description
This original Mimaki printhead Unit Assy is suitable for Mimaki UJF-3042 printers. This is the original Mimaki part (number M010010 replacing M013773).
The Ricoh GEN4 (MH2420) printhead, featuring 384 nozzles, a firing frequency of 30 kHz, and a 7-picoliter droplet size with greyscale capability, is designed for use in Mimaki UJF-3042 printers. This genuine printhead includes a built-in heater and thermistor for optimal performance.
Mimaki UJF3042 Printhead MP-M010010 Specifications
| Number of nozzles | 384 (2*192 channels), staggered |
| Nozzle spacing (within a row) | 1/150¡¯¡¯ (0.1693mm)/row |
| Temperature control | Integrated heater and thermistor |
| Operator temperature range | Up to 60¡æ |
| Native drop volume | 7pl |
| Drop volume range | 5-25pl with greyscale |
