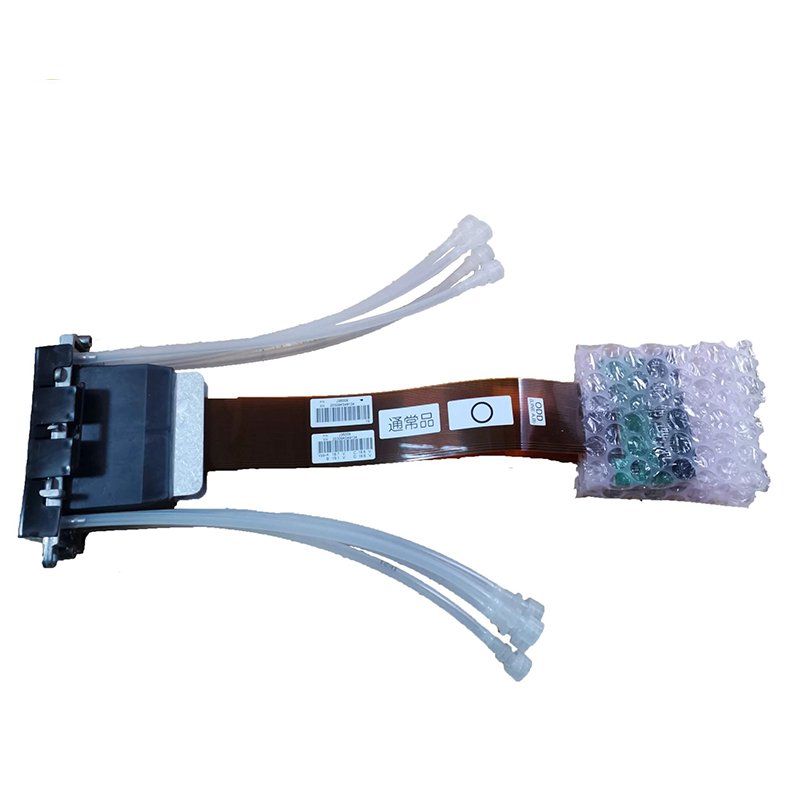

Ricoh Gen5 Head (Mimaki TS500/TX500 MP-M022653)

Dimensions: 89 x 25 x 69 mm (excluding cables)

Head Materials: SST, Nickel alloy, and Epoxy Adhesive

Life: 100 billion actuations per nozzle

Country of Origin: Japan

Delivery:

Payment:

*For more information about this printer part, you can send us an inquiry.

Get Quotes Send Inquiries

Product Details

Ricoh Gen5 Head (Mimaki TS500/TX500 MP-M022653) Description

This Gen5 (MH5420/5440) N221345D Printhead Assy Type-D is suitable for Mimaki TS500-1800 & TX500-1800 series printers. This is the original Mimaki part (number MP-M022653, replacing M014140).

Our printhead has a serial number. The printhead is required to be installed by professional personnel. All our printheads are high-precision commodities and brand new; any improper operation or substandard supporting products will damage the printheads. So, after receiving the goods, please first confirm the print head model and specifications. If there are any problems, please contact our sales staff as soon as possible. Any problem after the print heads are installed and used will be non-refundable.

Ricoh Gen5 Head (Mimaki TS500/TX500 MP-M022653) Specifications

Nozzle number	4*320
Nozzle spacing	0.1693 mm
Nozzle density	Up to 600npi
Native drop volume	7 pl
Drop volume range	7-35 pl
Drop velocity	7 m/s
Jetting frequency	Up to 60 kHz
Dimensions	892569mm (excluding cables)
