Mimaki UCJV150/UCJV300 Printhead M026887 Description

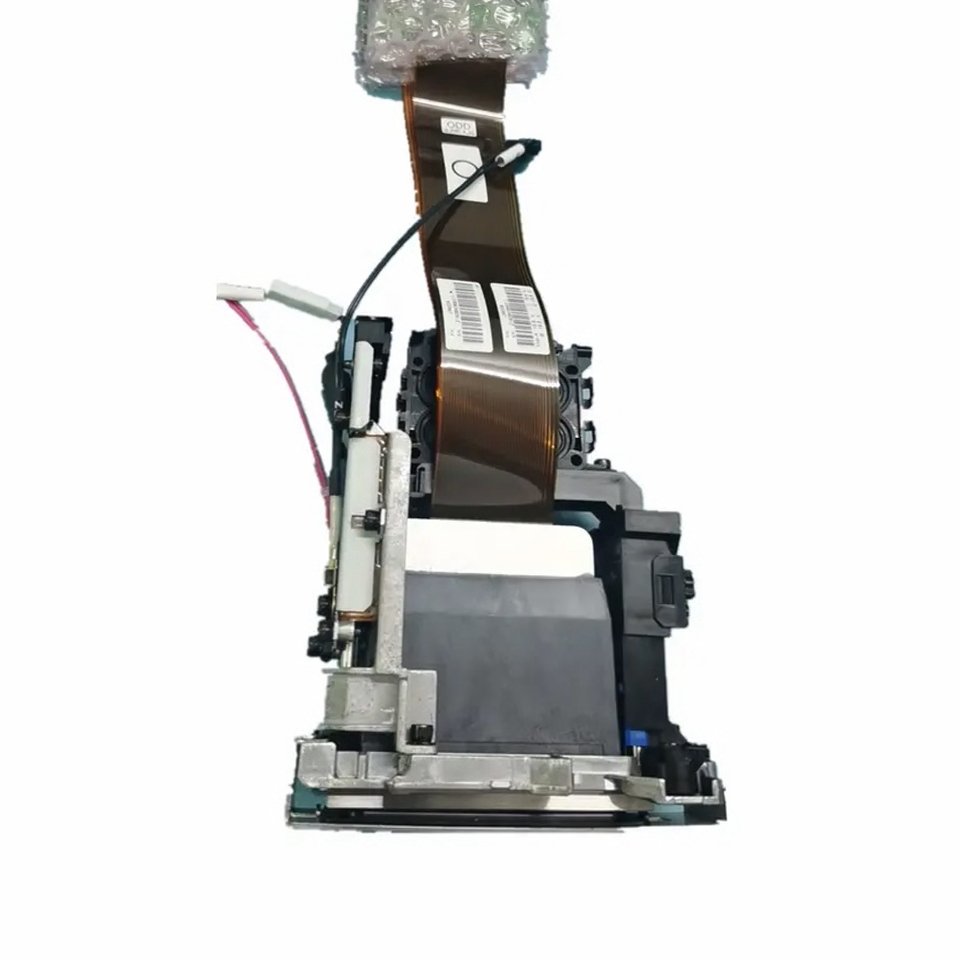

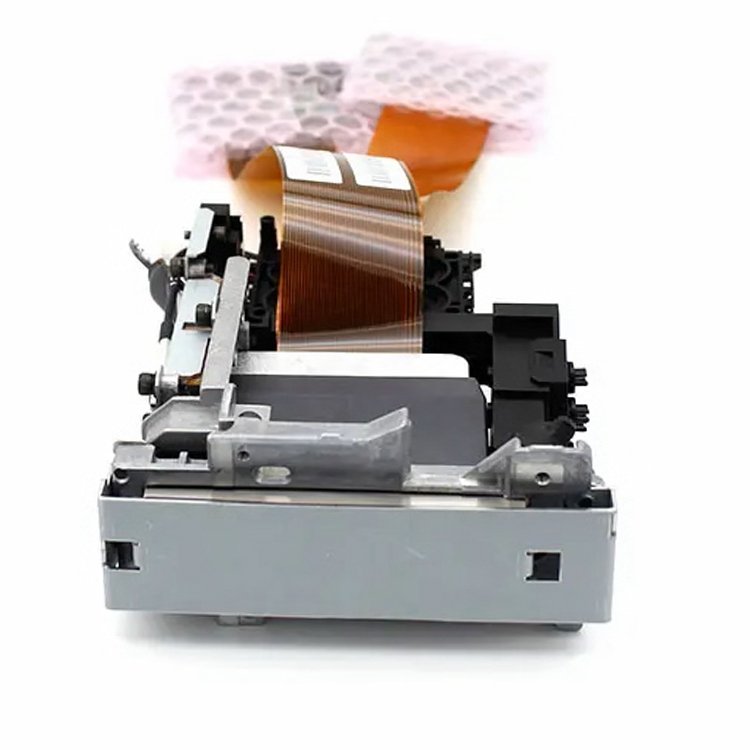

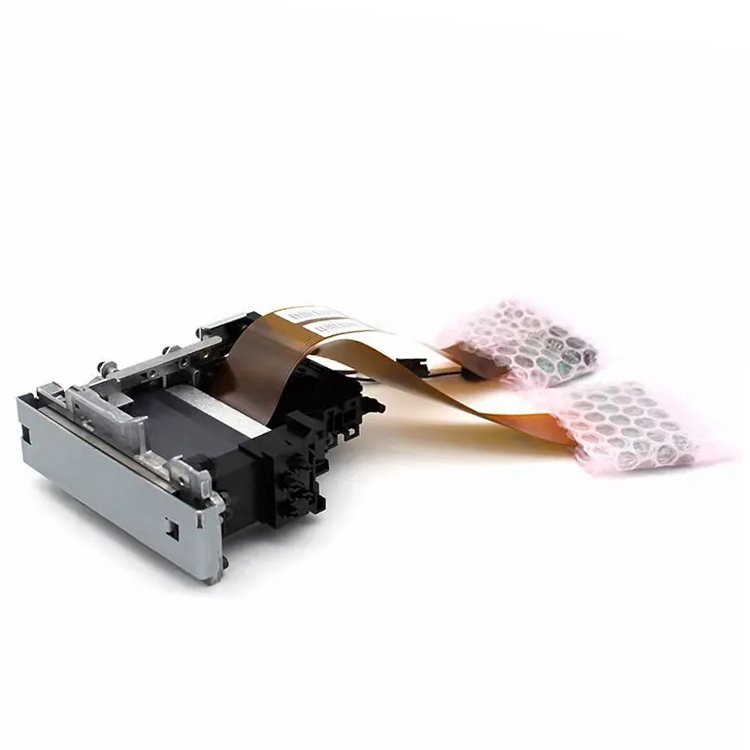

This is an Original and new Mimaki Gen5 Printhead. Mimaki cjv150 160 print head (GEN5 Maintenance Head U Assy) is suitable for Mimaki UCJV300 printers. This is the original Mimaki part (number MP-M026887).
Mimaki UCJV150/UCJV300 Printhead M026887 Specifications
| Head materials | SST, Nickel alloy and Epoxy Adhesive |
| Nozzle plate surface | Coated SST |
| Number of nozzles | 4 x 320 nozzles |
| Nozzle spacing | 0.1693 mm |
| Nozzle density | up to 600 npi |
| Piezo type | D33 Stacked PZT |
| Native drop volume | 7 pl |
| Drop volume range | 7 ¨C 35 pl |
| Drop velocity | 7 m/s |
| Jetting frequency | Up to 60 kHz |
| Temperature control | Integrated Heater and Thermistor |
| Operator temperature range | Up to 80¡ã C |
| Life | 100 billion actuations per nozzle |
