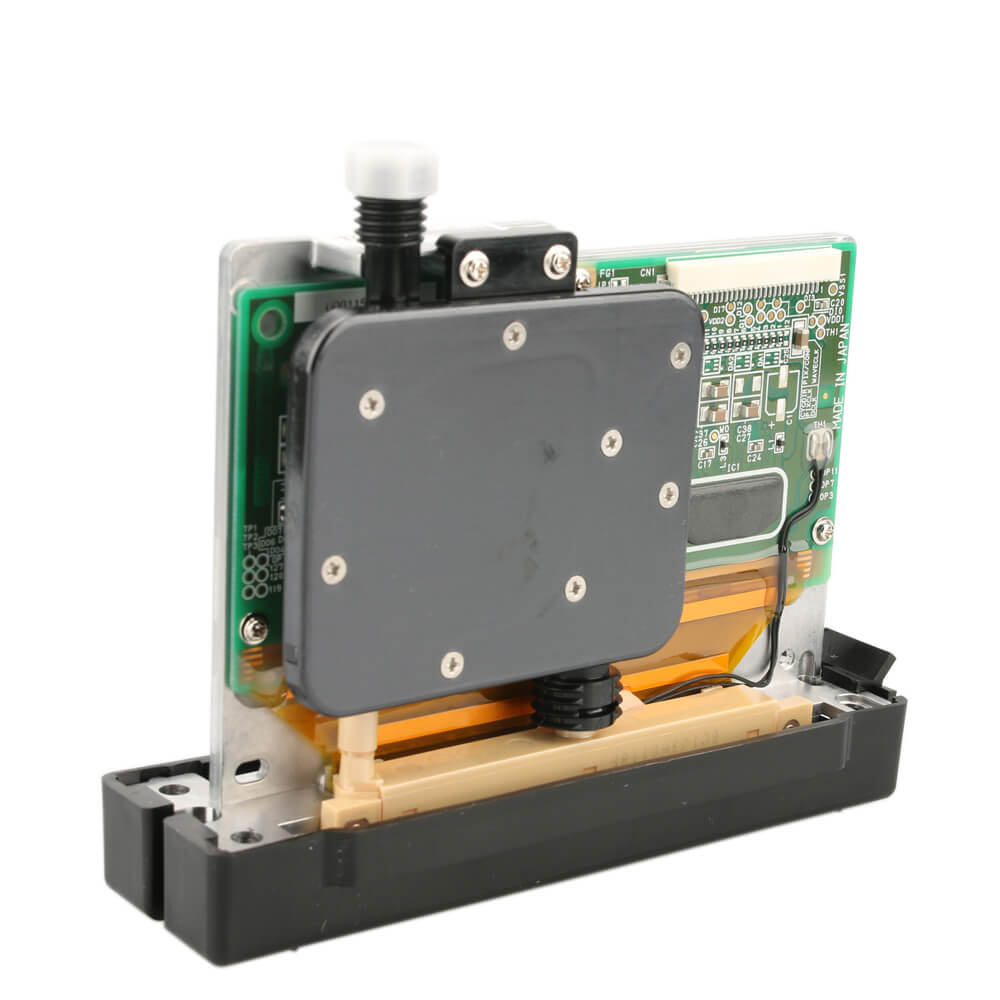

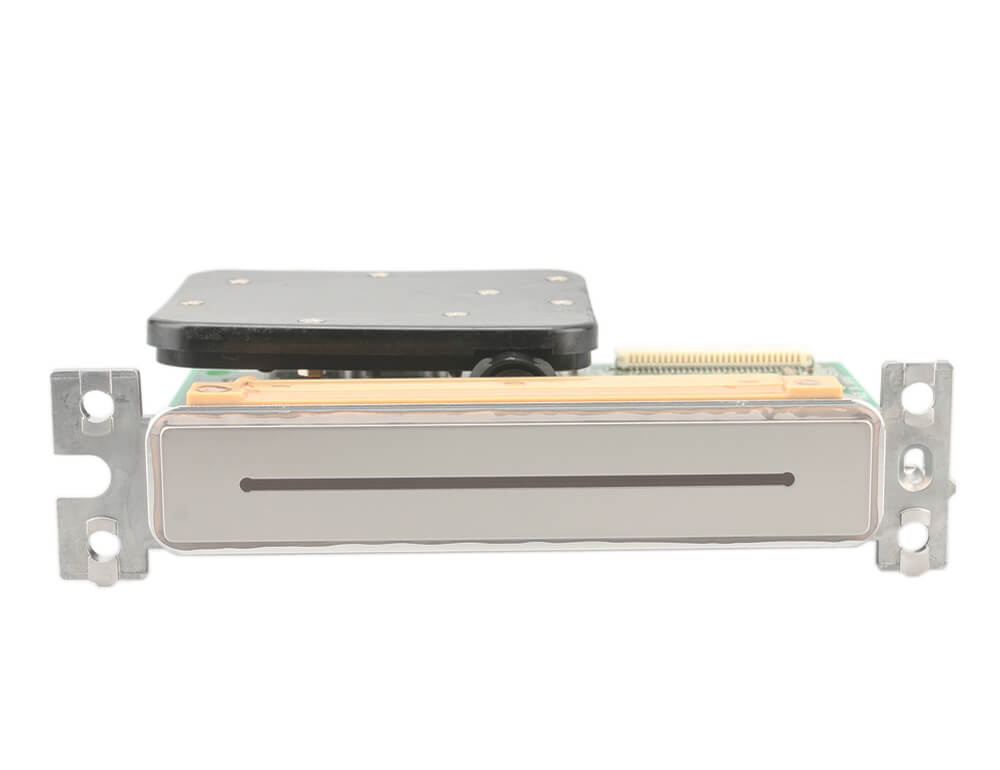

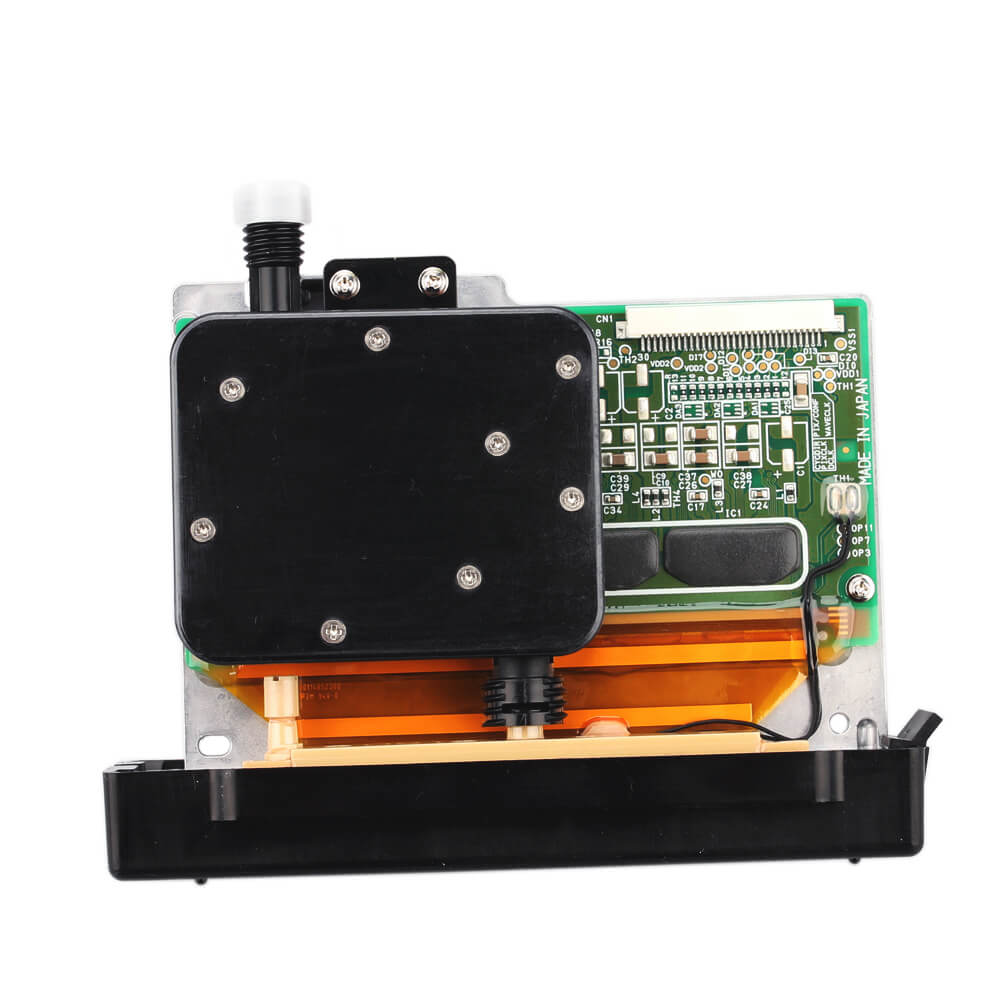

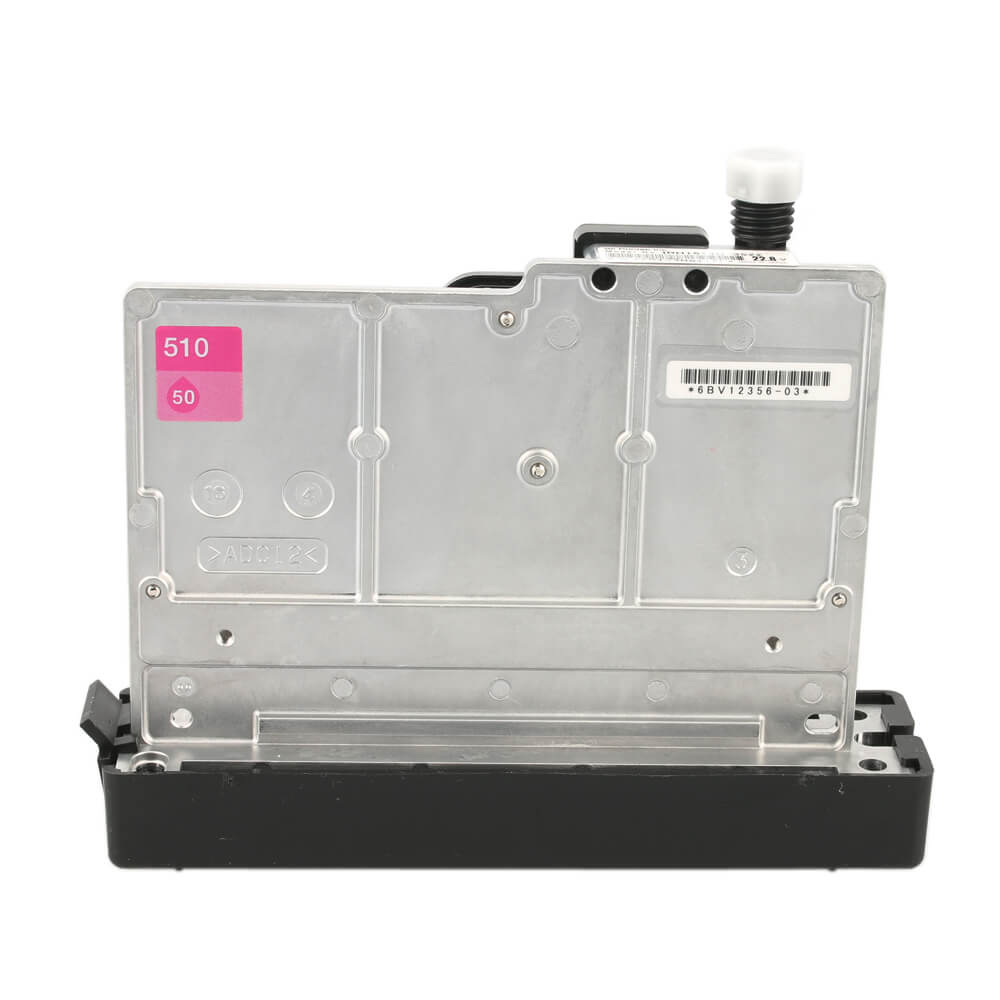

Seiko SPT510-50 Printhead Description
As an extension product of the SPT510 series of products, the Seiko SPT510-50PL printhead is positioned for users of high-volume advertising inkjet processing. It can provide stable, reliable, and highly flexible inkjet solutions to produce eye-catching promotional advertisements.
High-capacity printhead: 72 mm nozzle width, 50 PL ink droplets, single nozzle printing 240 X 360 dpi, 2 times to achieve color saturation, hourly output capacity of 80 square meters.
Excellent stability: Inheriting the excellent inkjet stability, reliable jet life, and high-quality image output of the SPT510-35PL printhead.
Powerful additional functions: It internally comes with an ink damper to improve ink supply stability, a filter device to prevent inkjet clogging, a real-time voltage control system to improve jet stability, a TICKLING function to prevent printhead clogging, etc.
Seiko SPT510-50 Printhead Specifications
| Technology | Drop-on-demand Piezo Electric |
| Active Nozzles | 510 |
| Native Resolution | 180 dpi |
| Printing Speed | 4.2 m/s |
| Print Width | 71.8 mm |
| Drop Volume | 50 pl |
| Firing Frequency | 6-8 kHz |
| Ink Type | Solvent, UV, and oil-based inks |
