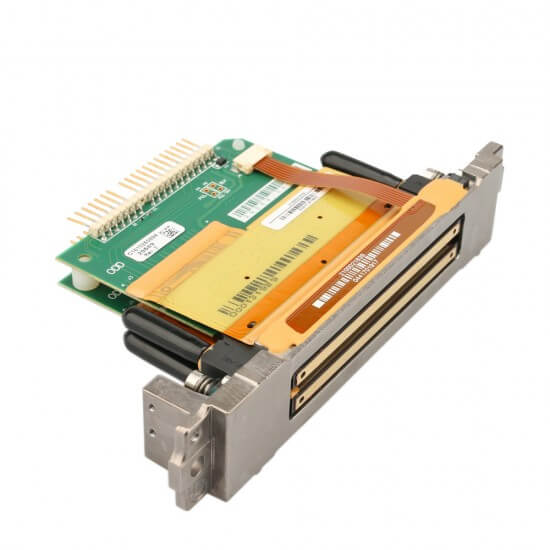

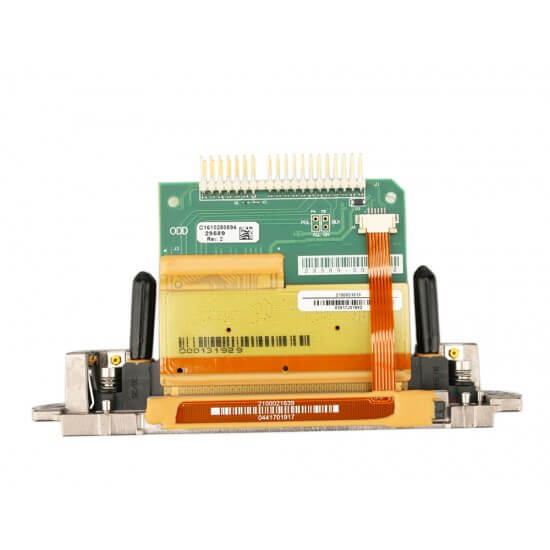

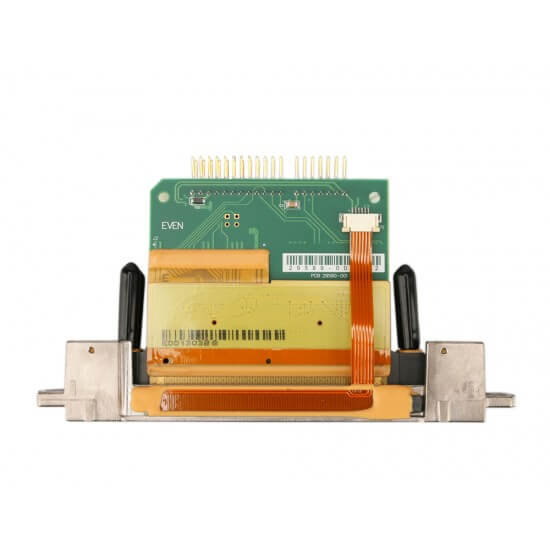

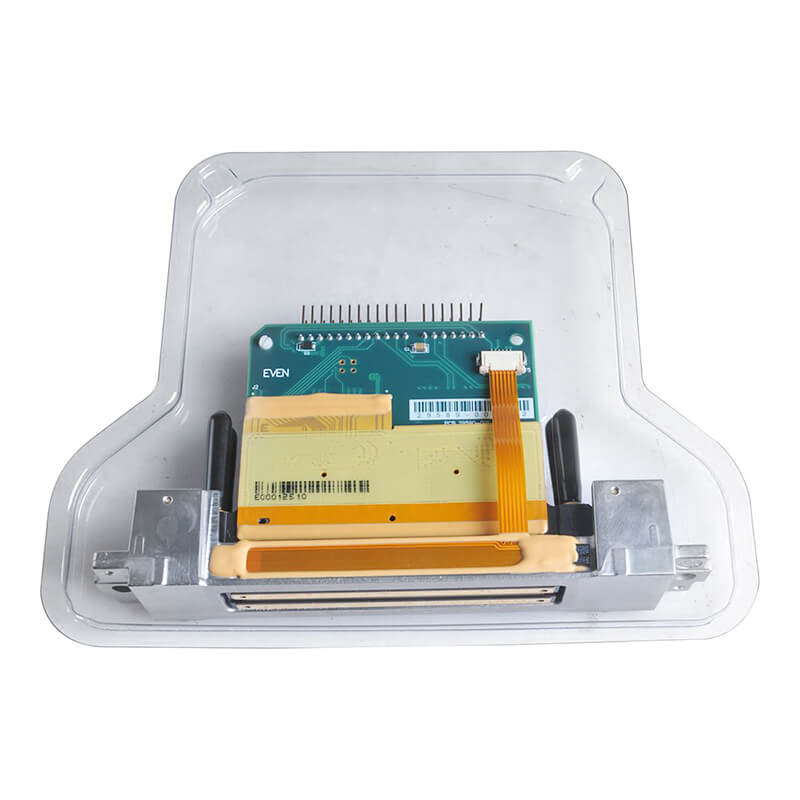

Spectra Polaris PQ-512/35 AAA Printhead Description
The Polaris PQ-512/35 AAA Printhead features 512 independent channels, arranged in multiple rows with a 200 dots-per-inch spacing for single-color operation and 100 dots-per-inch spacing for two-color operation. This spectra polaris printhead is optimized for binary jetting with a native drop size of 35 picoliters and a nominal drop velocity of 8 meters per second, suitable for jetting fluids with a viscosity range of 8 to 20 centipoise. Based on the VersaDrop jetting technology, it can adjust to binary operation with variable drop sizes up to 80 picoliters.
The PQ-512/35 AAA Printhead can be used with various inks, including solvent, UV, and aqueous inks. It can achieve a long service life and consistent output due to its use of field-proven materials and a repairable design.
Spectra Polaris PQ-512/35 AAA Printhead Specifications
| Technology | Piezo Electric |
| Max. Resolution | 800 dpi |
| Print width | 64.897 mm (2.555 inches) |
| Cal. Droplet Size | 35 pico litre |
| Adj. Range for Droplet Size | 35 pico litre/30kHz, 80 pico litre/13kHz |
| Tot. Amount of Nozzles | 512 |
| Nozzle Spacing | 127 microns (1 color) or 254 microns (2 colors) |
| Firing Frequency | 30 kHz (15 kHz for 80 pico liter droplets) |
| Operating Temperature | up to 60¡ãC |
| Ink Compatibility | Solvent, water-based, and UV Inks |
| Fluid Viscosity at Jetting | 8 to 20 centipoise |
| Dry Weight | 160 grams |
