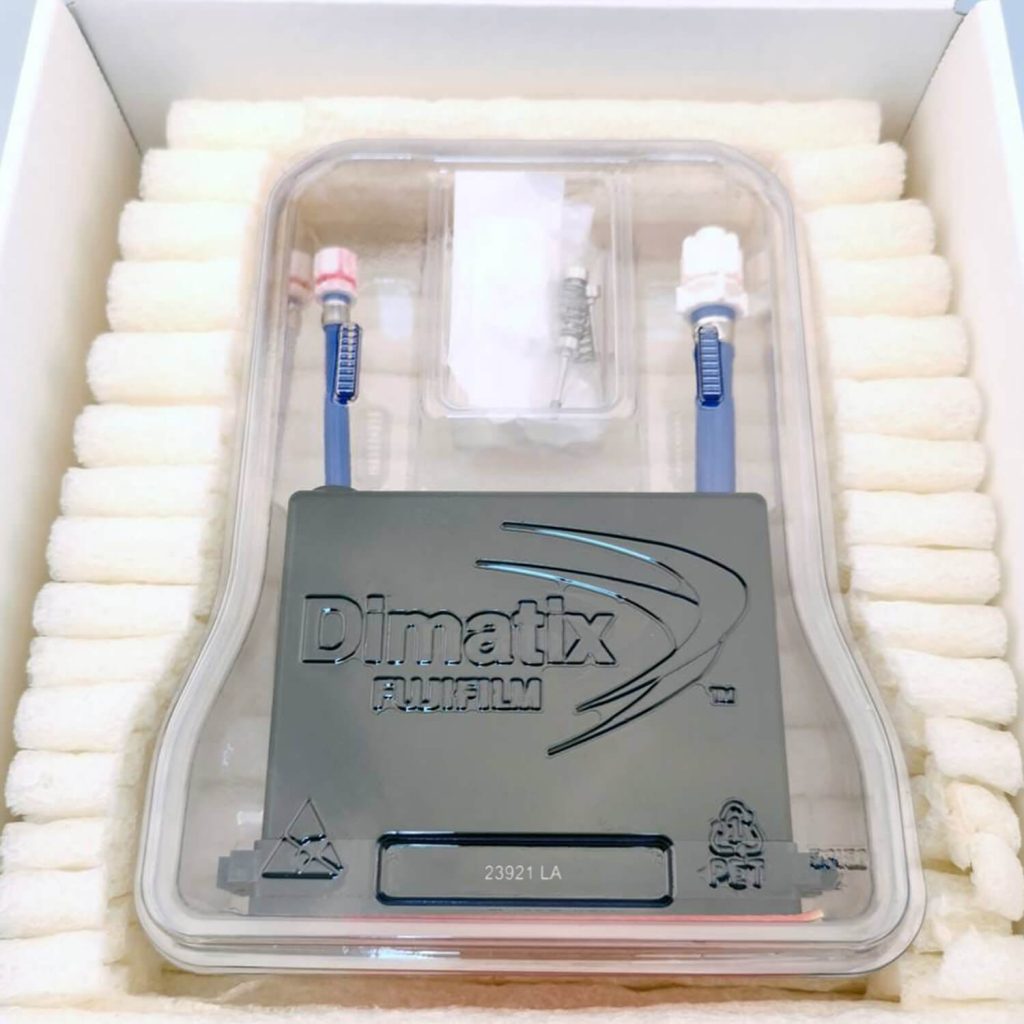

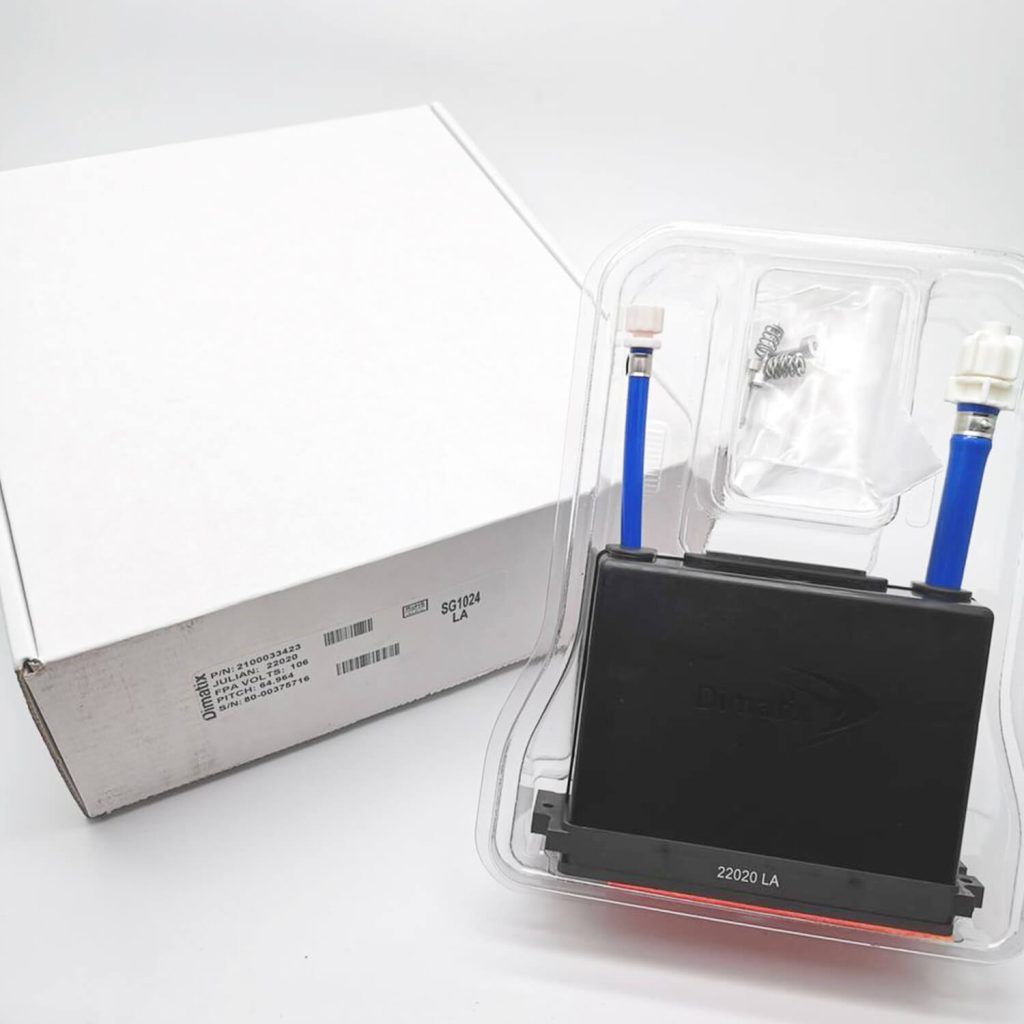

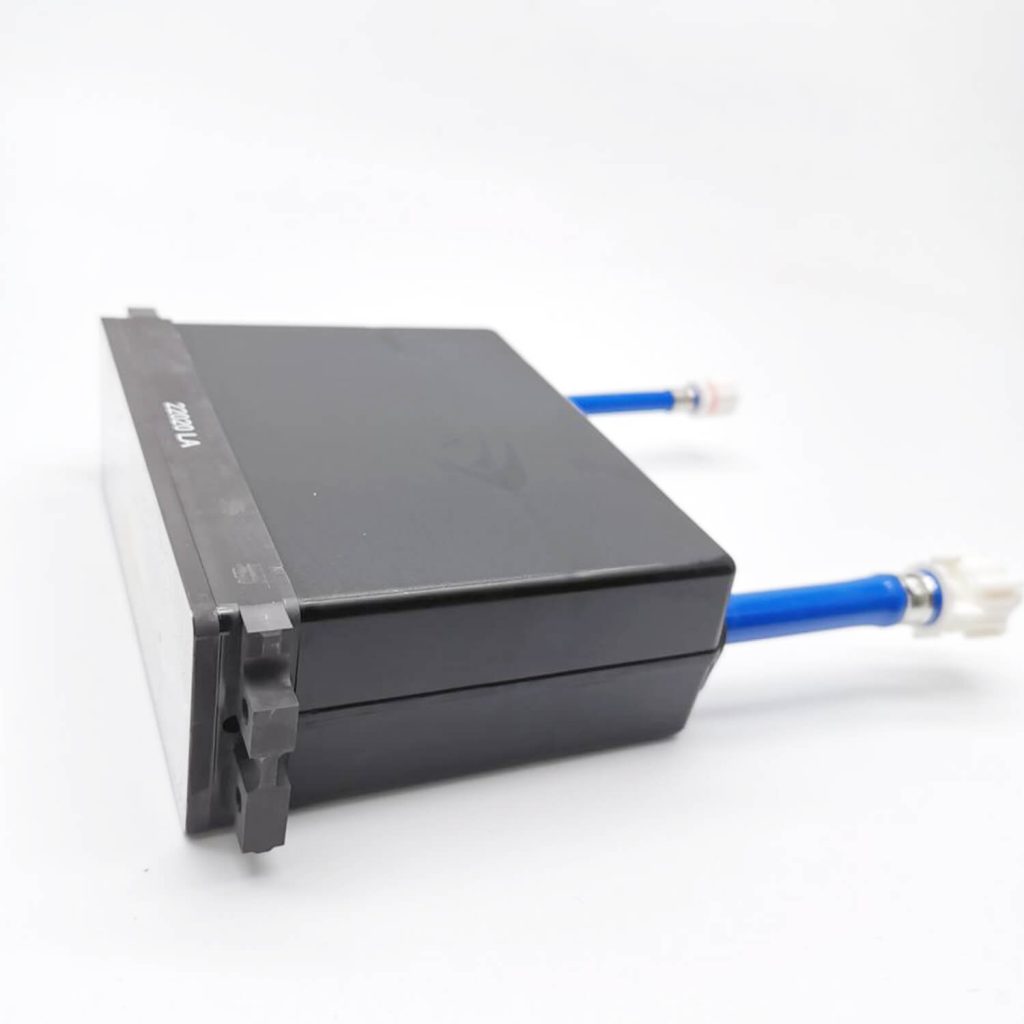

Starfire SG1024/LA Printhead Description
The SG1024/LA printhead features 1024 independent channels, arranged in 8 rows on a single nozzle plate, enabling resolutions up to 400 dpi. Each of the 1024 nozzles can be activated either simultaneously or individually. It is compatible with a wide range of ink formulations, including solvent, UV-curable, and aqueous inks.
The Starfire SG1024 is engineered for high-speed scanning and single-pass industrial systems. This high-performance piezoelectric drop-on-demand printhead supports one or two-channel configurations with resolutions up to 400 dpi. Utilizing field-proven components, it ensures consistent output and long service life, thanks to its REDIJET? continuous ink recirculation technology. The Starfire printhead is fully repairable and features a replaceable metal nozzle plate assembly designed to resist abrasion and damage.
Starfire SG1024/LA Printhead Specifications
| Number of Addressable Jets/Module | 1024 |
| Print Width (mm/in) | 64.96 (2.55) |
| Native Resolution (dpi) | 400 (200 2C configuration) |
| Firing Frequency (kHz) | 20/8 |
| Versadrop Max Productivity (ng/kHz) | 1500 |
| Native Drop Size/Largest Drop Size (pl) | 80/200 |
| Nozzle Plate Technology | Metal |
| Compatible Fluids | UV-curable, organic solvents, and aqueous inks |
| Viscosity Range (cP) | 8¨C20 (10¨C14 for highest productivity) |
| Temperature Control | Yes |
| Inkjet Operating Temperature Range (C/F) | Up to 50¡ãC / 122¡ãF |
| Integrated Temperature Sensor | Included |
| OEM Accessible Non-volatile Memory | 64-byte rewritable |
