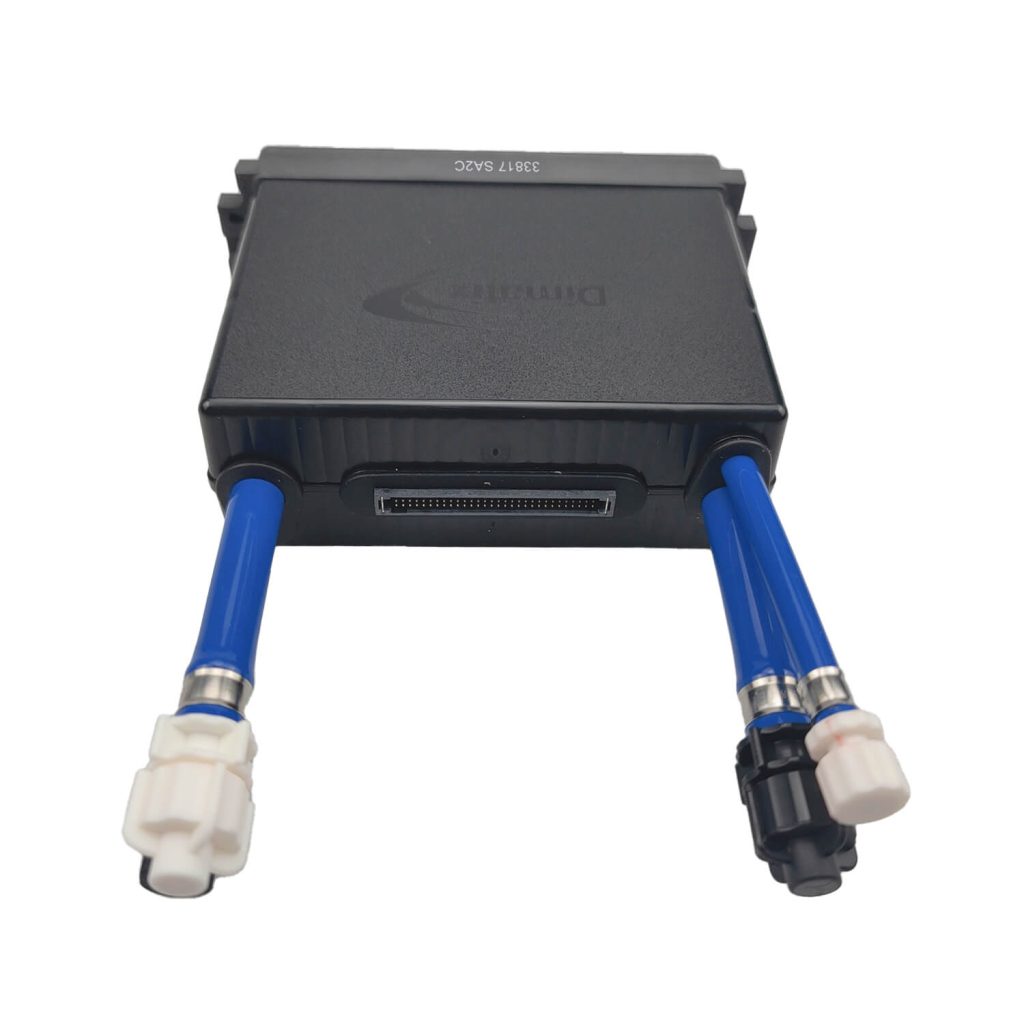

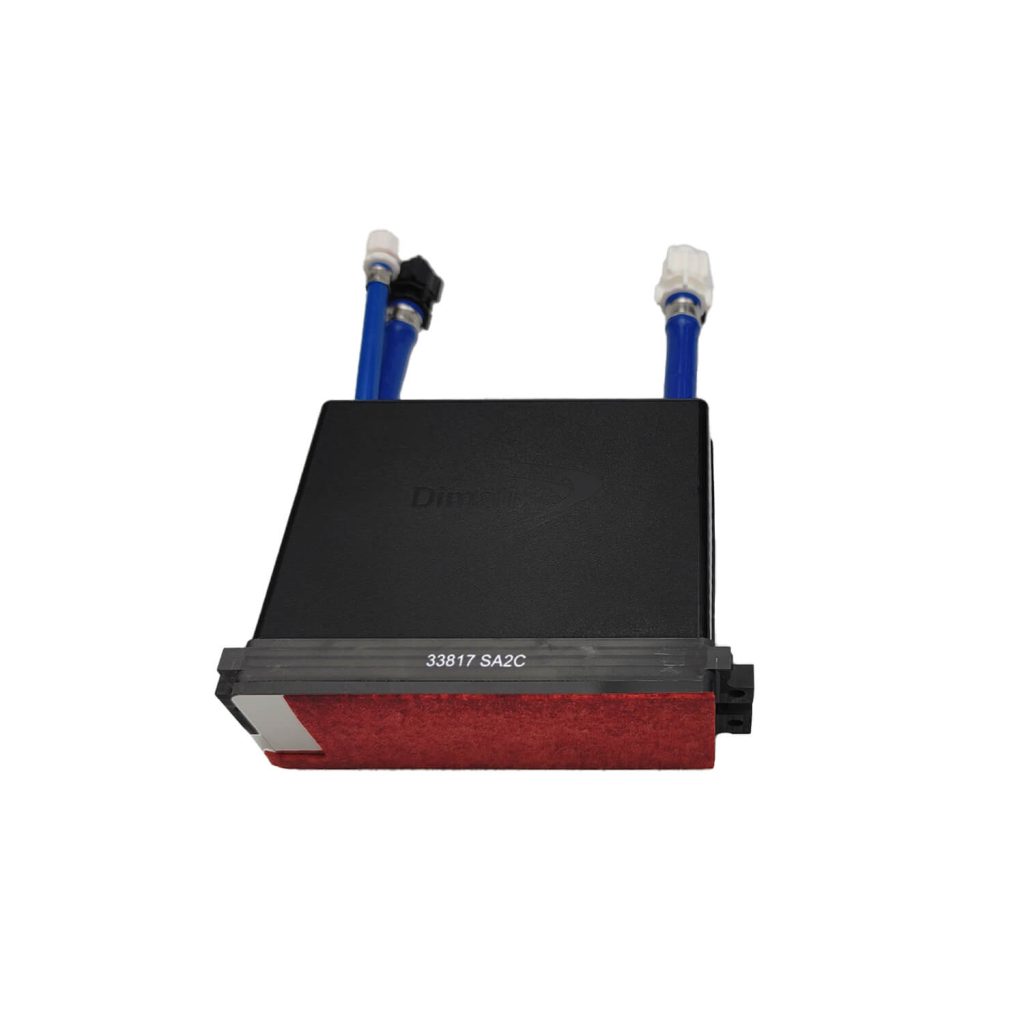

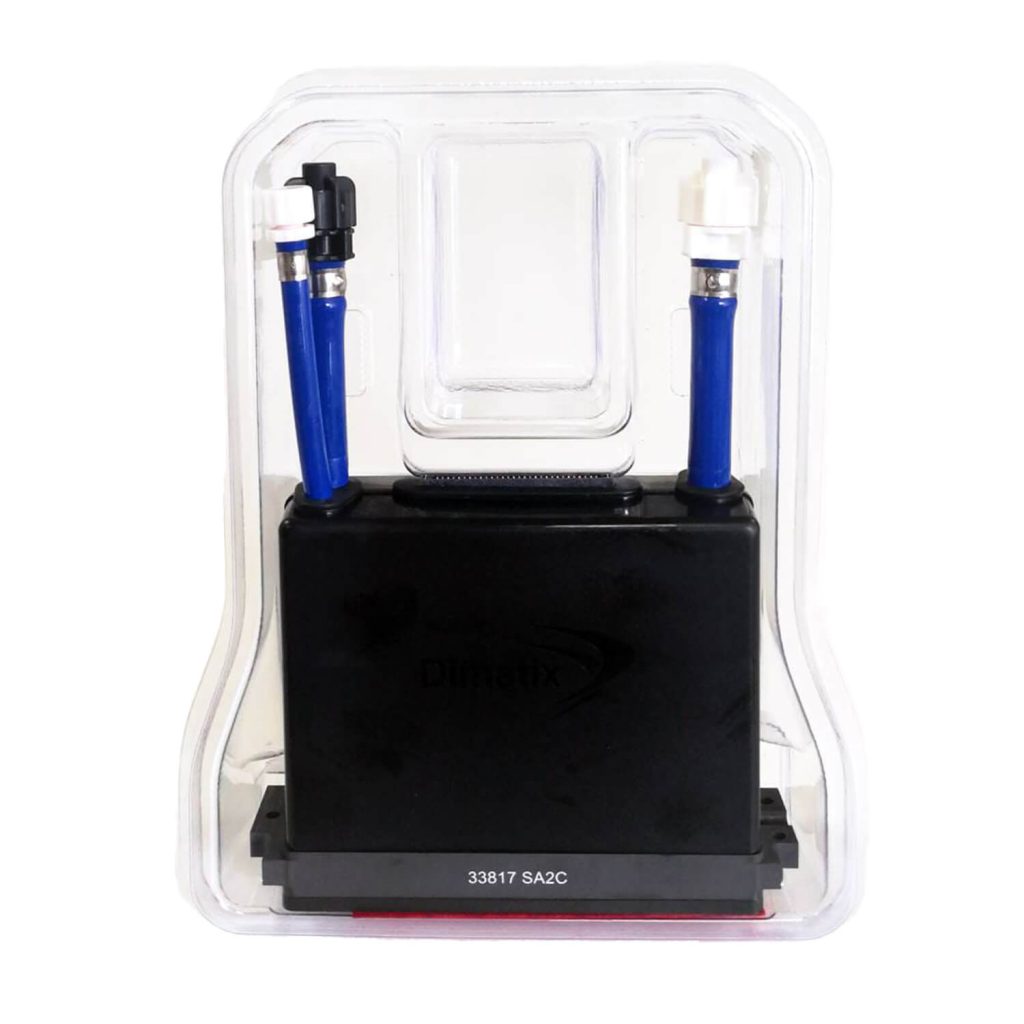

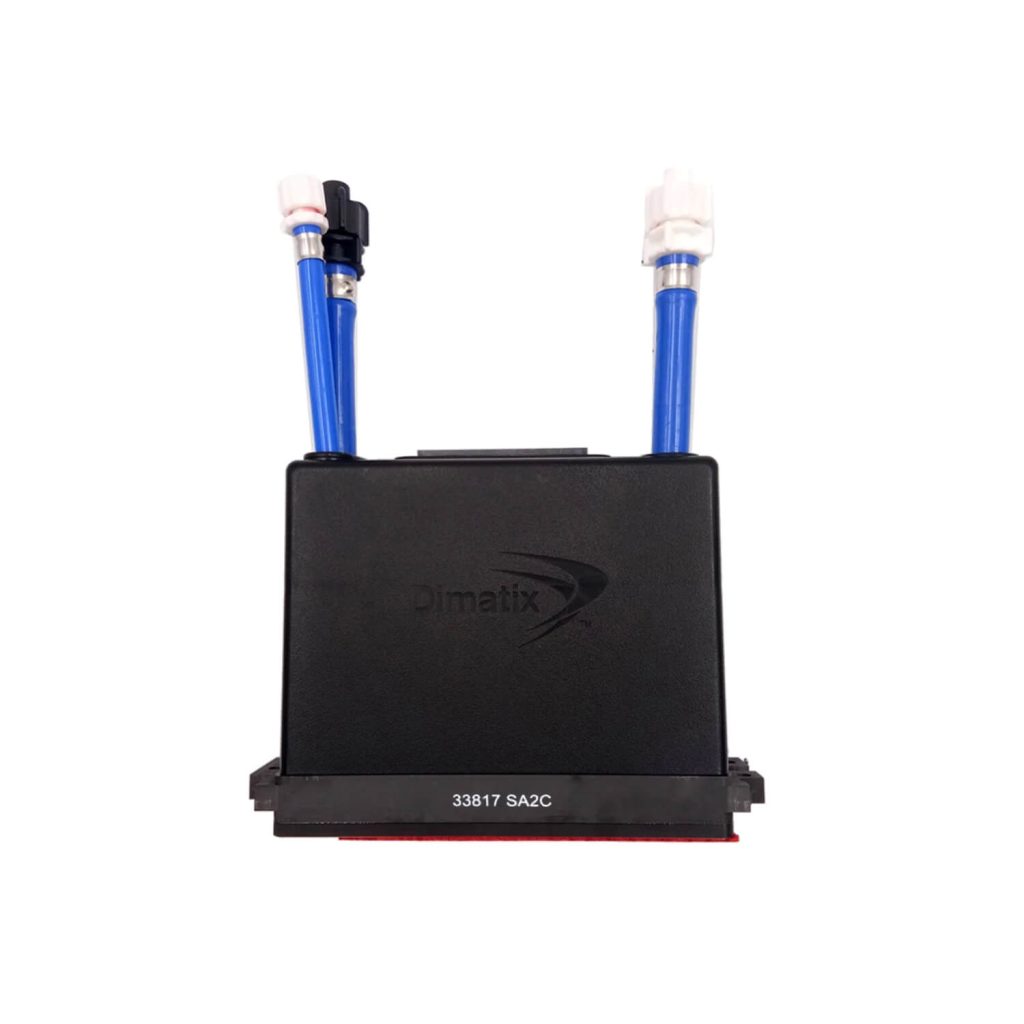

Starfire SG1024 SA2C Printhead Description
The StarFire? SG1024/SA-2C is a robust, compact unit engineered for demanding industrial textile applications and more. Constructed with field-proven materials, it ensures consistent performance and longevity, featuring continuous ink recirculation and dual-color operation at 200 dpi. It includes a replaceable metal nozzle plate, designed to resist abrasion and damage, and is compatible with solvent, UV-curable, and aqueous inks.
This Starfire printhead features two distinct ink paths, each with 512 independent channels arranged in four rows on a single nozzle plate, providing resolutions up to 200 dpi. All 1024 nozzles can be activated either simultaneously or individually.
Starfire SG1024 SA2C Printhead Specifications
| Number of Addressable Jets/Module | 1024 |
| Print Width (mm/in) | 64.96 (2.55) |
| Native Resolution (dpi) | 400 (200 2C configuration) |
| Firing Frequency (kHz) | 50/18 |
| Versadrop Max Productivity (ng-kHz) | 600 |
| Native Drop Size/ Largest Drop Size (pl) | 12/33 |
| Nozzle Plate Technology | Metal |
| Compatible Fluids | UV-curable, organic solvents, and aqueous inks |
| Viscosity Range (cP) | 8¨C20 (10¨C14 for highest productivity) |
| Temperature Control | Yes |
| Inkjet Operating Temperature Range (C/F) | Up to 50¡ãC / 122¡ãF |
| Integrated Temperature Sensor | Included |
| OEM Accessible Non-volatile Memory | 64-byte rewritable |
