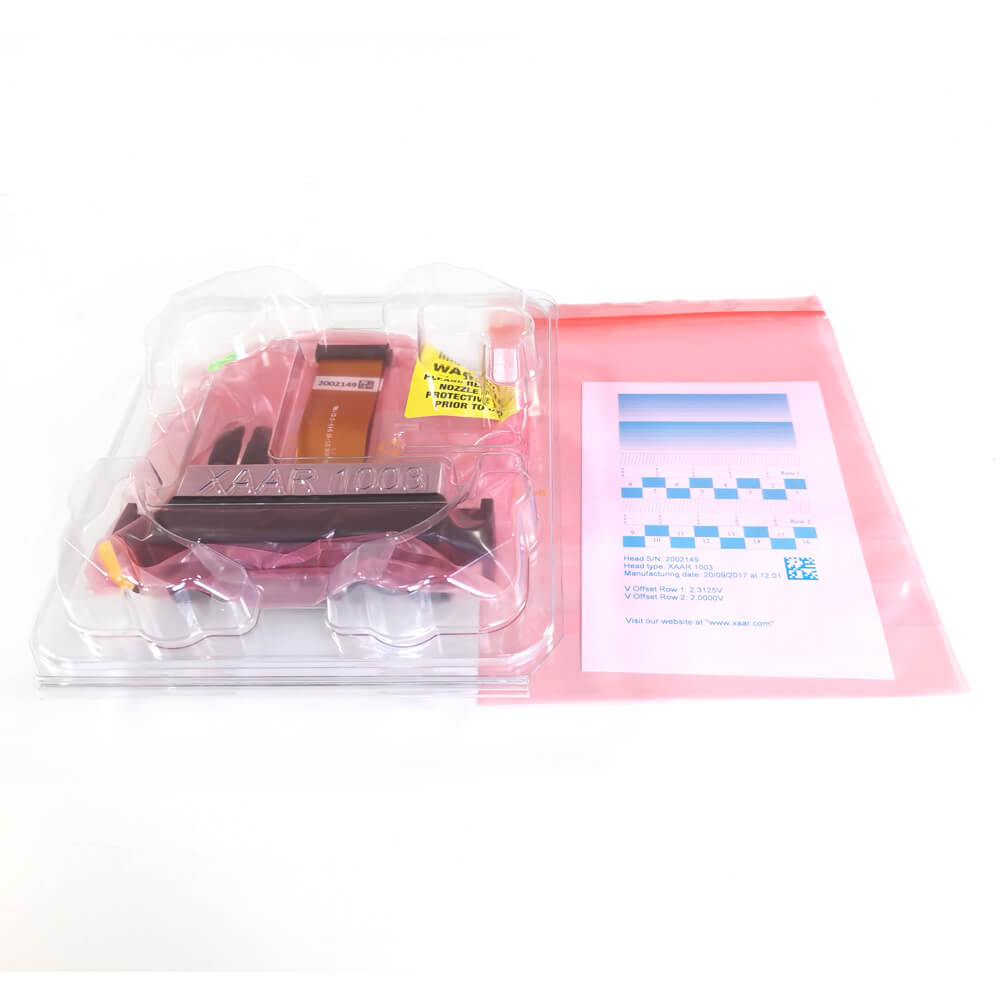

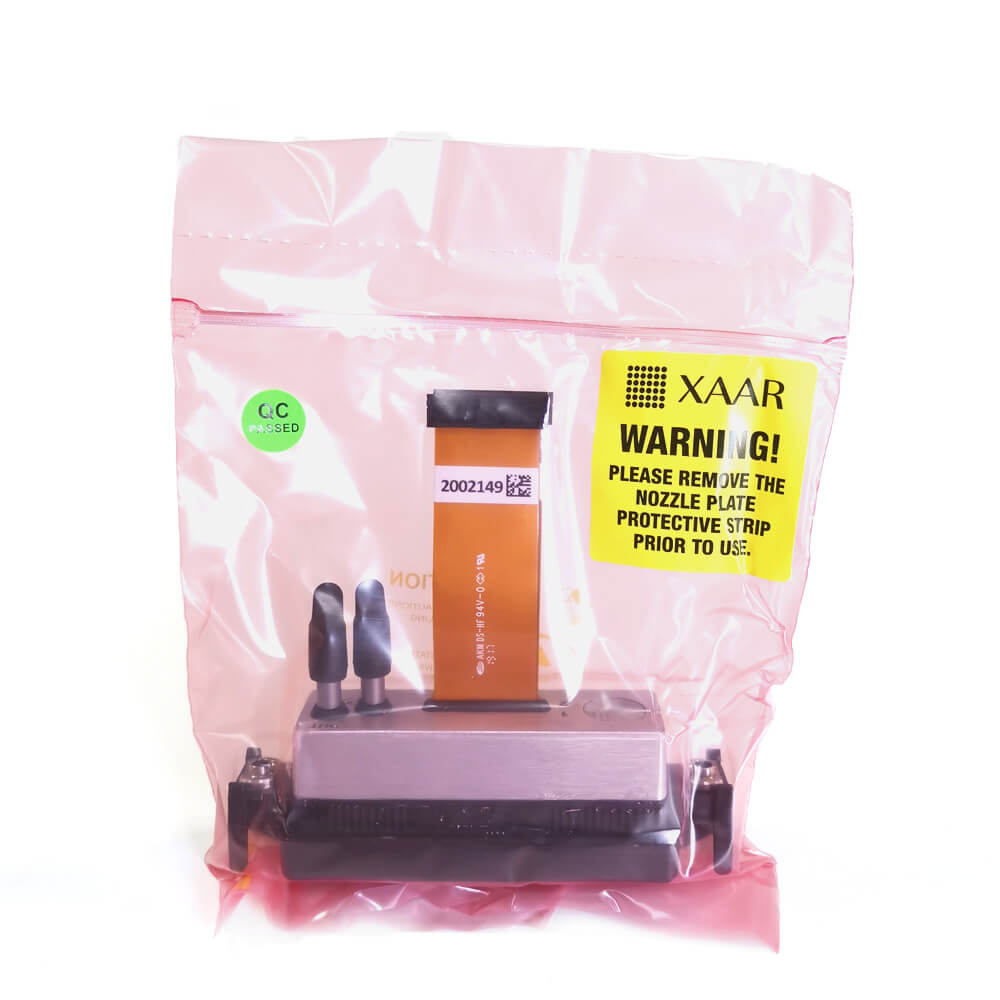

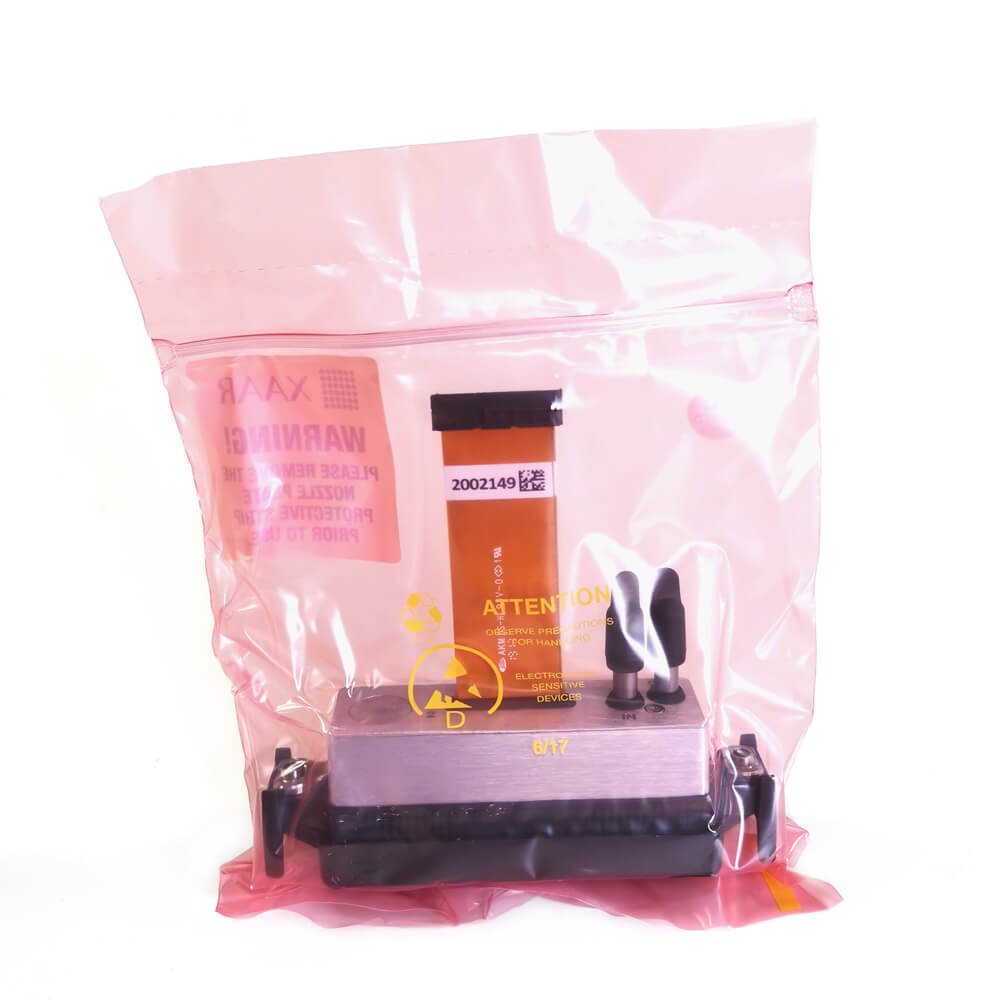

Xaar 1003 GS12C Printhead Description
The Xaar 1003 GS12C is a next-generation ceramic printhead designed for high-quality, high-volume tile printing. Equipped with 1,000 nozzles and Xaar¡¯s advanced High Laydown Technology, it delivers strong color density, smooth coverage, and excellent jetting stability across demanding production environments.
A key feature of the 1003 series is the XaarGuard? nozzle plate protection system, which significantly reduces maintenance frequency and ensures longer uninterrupted printing runs. With Tuned Actuator Manufacturing, the GS12C also provides improved uniformity across wide print widths¡ªideal for large-format ceramic tiles.
Fully backward-compatible with Xaar 1001C and 1002C printers, this model offers a seamless upgrade path for manufacturers seeking better durability, consistency, and output efficiency. Whether replacing a single head or upgrading an entire print bar, the Xaar 1003 GS12C enhances both print performance and operational reliability.
Xaar 1003 GS12C Printhead Specifications
| Active Nozzles | 1000 |
| Number of rows | 2 |
| Print Swathe Width | 70.5 mm |
| Nozzle density (nozzles per inch) | 360 npi |
| Drop volume | 12 to 84 pl |
| Typical Firing Frequency | 6 to 12 kHz |
| Number of grey levels | 7 |
| Ink Type | Oil-based |
Xaar 1003 GS12C Printhead Applications
- Floor tiles
- Special effects
- Tile cladding for building exteriors
- Wall tiles
- Glass printing
